Butt welding machine SWT-V series
automaticlarge-diameterfor plastic pipe

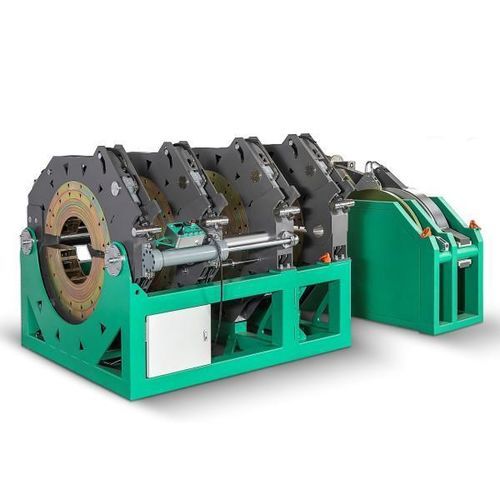

Butt welding machine - SWT-V series - Hebei Mingmai Technology Co., Ltd. - automatic / large-diameter / for plastic pipe
Butt welding machine - SWT-V series - Hebei Mingmai Technology Co., Ltd. - automatic / large-diameter / for plastic pipe
Butt welding machine - SWT-V series - Hebei Mingmai Technology Co., Ltd. - automatic / large-diameter / for plastic pipe - image - 2
Butt welding machine - SWT-V series - Hebei Mingmai Technology Co., Ltd. - automatic / large-diameter / for plastic pipe - image - 3
Butt welding machine - SWT-V series - Hebei Mingmai Technology Co., Ltd. - automatic / large-diameter / for plastic pipe - image - 4
Add to favorites
Compare this product
Go to the Hebei Mingmai Technology Co., Ltd. website for more information

Characteristics

Technique
butt
Operational mode
automatic
Applications
for plastic pipe, large-diameter
Power supply
380V three-phase
Other characteristics
CE, electric, ISO, high-pressure
Power

Max.: 21,500 W

Min.: 17,500 W

Description

High-pressure thermofusion (butt fusion) welding machines for large-diameter thermoplastic pipes — models SWT-V1000/630SHP and SWT-V1200/630SHP.

Overview
  • MM-Tech machines designed for butt fusion welding of HDPE, PE, PP and PVDF pipes in demanding environments such as mining, water infrastructure and gas distribution.
  • Suitable for large diameters with model options covering 630–1200 mm.


Key features
  • Innovative "3+1" frame design to improve stability when welding short spigot fittings.
  • High-precision hydraulic control using oil seals, quick couplings and pressure valves from reputable suppliers (Japan, USA, Italy).
  • Thick Teflon-coated heating plate to reduce temperature differentials and minimize adhesion.
  • Powerful single-sided double-blade milling cutter for efficient and accurate pipe end preparation.
  • Human-centered interface and intuitive controls for straightforward operation and improved productivity.
  • Multiple integrated safety protection mechanisms to reduce operator risk.
  • Applications: water infrastructure, gas distribution systems, industrial pipelines and mining pipelines.
  • CE certification; 2-year warranty and professional technical support available.


Technical table (models comparison)
  • Model: SWT-V1000/630SHP | SWT-V1200/630SHP
  • Welding range O.D. (mm): 630–1000 | 630–1200
  • Reducer inserts: 630, 710, 800, 900 | 630, 710, 800, 900, 1000
  • Inserts type: Multi / ISO / Single | Multi / ISO / Single
  • Piston area: 38.80 cm² | 50.70 cm²
  • Welding pressure range: 0–160 BAR | 0–160 BAR
  • Power supply: 380V 50/60Hz, 3P | 380V 50/60Hz, 3P
  • Rated power: 22.7 kW | 28.5 kW
  • Heater power: 17.5 kW | 21.5 kW
  • Trimmer power: 3 kW | 4 kW
  • Pump power: 2.2 kW | 2.2 kW
  • Temperature range: Maximum 320 ℃ | Maximum 320 ℃
  • Packing dimensions (sets): 2600×1890×1990 / 1370×1220×2110 / 850×400×560 (SWT-V1000) | 2900×1600×2300 / 1220×1000×2350 / 850×400×560 (SWT-V1200)
  • Gross weight: 2318 kg | 3595 kg


Specifications / technical details
  • Compatible pipe materials: HDPE, PE, PP, PVDF.
  • Frame: "3+1" design for enhanced weld stability, especially on short spigots.
  • Hydraulics: premium components enabling precise pressure control up to 160 BAR.
  • Heating system: thick Teflon-coated plate, max temperature 320 ℃, designed for even heat distribution and minimal sticking.
  • Milling/trimming: high-efficiency milling cutter and dedicated trimmer power (3 kW / 4 kW depending on model).
  • Electrical requirements: 380V, 50/60Hz, 3-phase.
  • Power consumption (rated): 22.7 kW (SWT-V1000) or 28.5 kW (SWT-V1200).
  • Packing and transport: multiple crate sizes provided per model (see table above).
  • Certifications & warranty: CE certified, 2-year warranty, technical support and training available.
