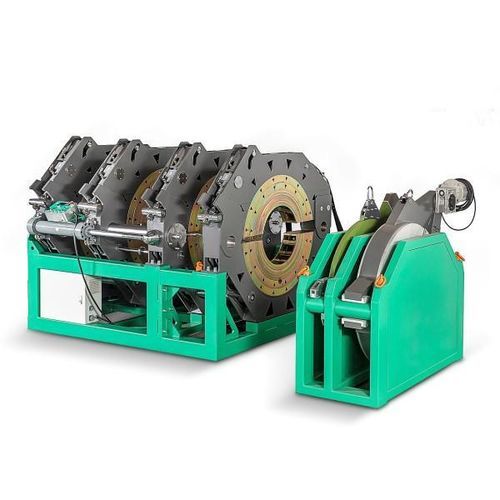

Butt welding machine SWT-V2000/1600Hmanuallarge-diameterfor pipes
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- manual
- Applications
- for plastic pipe, for thermoplastics, for pipes, large-diameter
- Power supply
- 380V three-phase
- Other characteristics
- hydraulic, ISO
- Power
80,500 W
Description
Overview
Hydraulic butt fusion welding machine for joining HDPE, PE, PP and PVDF pipelines used in water supply, gas distribution, mining and industrial installations. MM-Tech designs machines for field and workshop welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 standards.
Data Sheet
Model: SWT-V2000/1600H
Welding range O.D.: 1600–2000 mm
Suitable materials: PE, PP, PVDF (HDPE)
Reducer inserts: 1600, 1800, 2000
Power supply: 380V, 50/60 Hz
Heating plate max temperature: 270°C
Temperature deviation on surface: ≤ ±5°C
Rated power: 80.5 kW
Applications
Technical specifications
Hydraulic butt fusion welding machine for joining HDPE, PE, PP and PVDF pipelines used in water supply, gas distribution, mining and industrial installations. MM-Tech designs machines for field and workshop welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 standards.
Data Sheet
Model: SWT-V2000/1600H
Welding range O.D.: 1600–2000 mm
Suitable materials: PE, PP, PVDF (HDPE)
Reducer inserts: 1600, 1800, 2000
Power supply: 380V, 50/60 Hz
Heating plate max temperature: 270°C
Temperature deviation on surface: ≤ ±5°C
Rated power: 80.5 kW
Applications
- Potable water distribution
- Wastewater systems
- Mining and industrial pipeline installation
- HDPE vessel and boat construction
- Geothermal heating and cooling piping
- Municipal engineering pipelines
- Water treatment plants
- Industrial fluid transfer
- Agricultural irrigation networks
- Aquaculture floating-cage piping
- Gas distribution pipelines
Technical specifications
- Model: SWT-V2000/1600H
- Welding outer diameter range: 1600–2000 mm (63″–78″ IPS)
- Compatible materials: HDPE, PE, PP, PVDF
- Reducer inserts available: 1600, 1800, 2000
- Power supply: 380V, 50/60 Hz
- Heating plate maximum temperature: 270°C
- Temperature deviation on heating surface: ≤ ±5°C
- Rated power: 80.5 kW
- Standards: DVS 2207, ISO 21307, ASTM F2620
- Typical sectors: water supply, wastewater, mining, industrial, geothermal, aquaculture, agriculture, gas distribution
