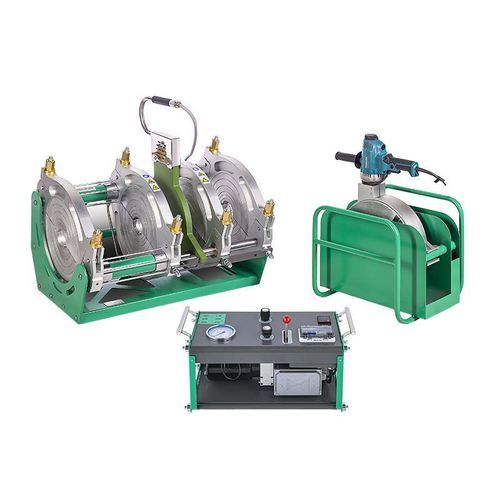

Butt welding machine SWT-V250/90SHP

automaticfor plastic pipefor the plastics industry

Product overview
MM-Tech supplies a high-pressure butt fusion welding machine designed for field and workshop joining of HDPE, PP and PVDF piping. The SWT-V250/90SHP is engineered to meet ISO 21307 and ASTM F2620 requirements for high-force fusion procedures, making it suitable for water, gas and industrial pipeline projects.

Key features

• Hydraulic valves with cartridge design for simplified maintenance and fast part replacement
• Trimmer driven by a Makita electric drill and worm-driven powertrain for precise facing
• Outer and inner clamps machined from engraved aluminum for consistent pipe alignment
• Hydraulic hoses mounted on the frame in stainless steel to reduce corrosion and cracking
• Heating plate with Dupont Teflon coating and stainless steel junction box for durable temperature control

Data sheet
SWT-V250/90SHP specifications

• Model: SWT-V250/90SHP
• Welding range O.D.: 90-250 mm (3"-10" IPS)
• Reducer inserts: 90, 110, 125, 140, 160, 180, 200, 225 mm
• Inserts type: Multi / ISO / Single
• Piston area: 10.99 cm²
• Welding pressure range: 0-180 BAR
• Power supply: 220 V, 50/60 Hz
• Rated power: 4.25 kW
• Heater power: 2 kW
• Trimmer power: 1.5 kW (Makita electric drill driven)
• Pump power: 0.75 kW
• Maximum temperature: 320℃
• Packing dimensions (examples): 850×540×610 mm; 580×560×710 mm; 670×360×490 mm
• Gross weight: 192.05 kg

Applications

• Water infrastructure: fabrication and on-site welding of HDPE supply and distribution pipelines
• Gas distribution systems: high-integrity fusion joints for safe pipeline operation
• Industrial pipelines: chemical and process lines requiring heat-, pressure- and corrosion-resistant joints
• Mining: pipeline assembly for water and chemical transport in harsh environments

Technical specifications

• Model: SWT-V250/90SHP
• Welding range (O.D.): 90-250 mm
• Reducer inserts: 90, 110, 125, 140, 160, 180, 200, 225 mm
• Inserts type: Multi / ISO / Single
• Piston area: 10.99 cm²
• Welding pressure range: 0-180 BAR
• Power supply: 220 V, 50/60 Hz
• Rated power: 4.25 kW
• Heater power: 2 kW
• Trimmer power: 1.5 kW
• Pump power: 0.75 kW
• Maximum temperature: 320℃
• Packing dimensions examples: 850×540×610 mm; 580×560×710 mm; 670×360×490 mm
• Gross weight: 192.05 kg
