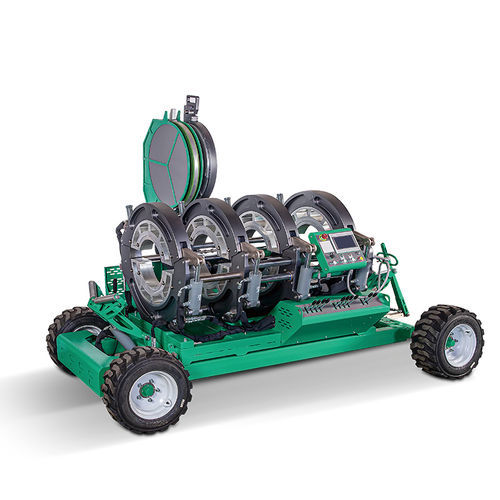

Butt welding machine Mazinger 630

automaticwith trolleyfor thermoplastics

The Mazinger 630i is a trailer-mounted butt fusion welding machine built for on-site construction and infrastructure projects. It welds thermoplastic pipes (HDPE, PE, PP, PVDF) with automated control and traceable data logging to meet project quality and reporting requirements.

Key features

• Trailer-mounted, removable machine chassis for in-ditch and mobile use
• Dual-axis structural frame for even distribution of welding force
• On-board heating plate with protection frame and insulated shield
• High-capacity hydraulic trimmer (removable trimmer available for short spigots)
• Hydraulic pipe lift and hydraulic systems for loading/unloading and high-force welding
• SIEMENS PLC fully automated control with simplified push-button welding procedure
• Quick-fit ISO inserts and anti-slip jaws to secure pipes during fusion
• Data-logging capability (PEWELDBANK compatible), USB port for downloads and firmware updates, up to 30,000 welding reports

Applications

• Mobile welding on construction sites and civil works
• Gas pipeline installation, municipal engineering and infrastructure
• Water supply, wastewater, irrigation and industrial fluid transfer
• Mining pipelines and large-diameter HDPE fabrication

Technical specifications

• Model: Mazinger 630i
• Welding range (OD): 315–630 mm (12"–24" IPS)
• Insert sizes: 315, 355, 400, 450, 500, 630 (Quick Fit ISO inserts)
• Heater power: 9.3 kW
• Trimmer: Hydraulic (high-capacity)
• Power supply: Automatic, high-force mode; 220/380 V, 50/60 Hz, 3-phase
• Operating pressure range: 0–160 Bar
• Data storage: Up to 30,000 welding reports; USB port for data export and firmware upgrade
• Optional: Additional inserts, stub end device, mobile support roller; removable control panel
• Gross weight (indicative): 750 kg
