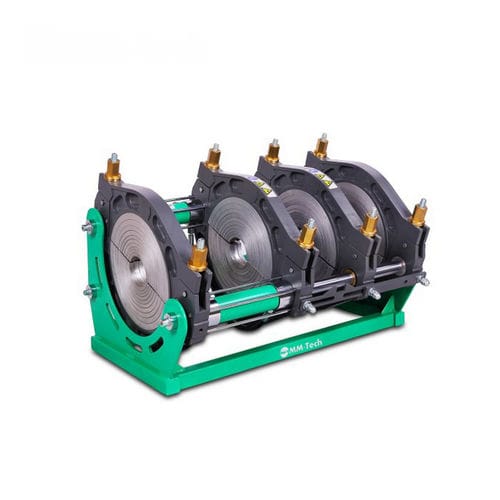

Butt welding machine SWT-V355/90A

automaticfor pipesfor thermoplastics

Product overview
Automatic butt fusion welding machine for joining PE, PP and PVDF pipes and moulded fittings. Long-life components minimise maintenance; fully integrated CNC hydraulic controller with PLC touch-screen ensures accurate, repeatable weld cycles and easy operation. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards.

Key features

• Stores and prints welding reports (capacity 2000 records); reports downloadable via USB interface.
• DuPont Teflon-coated heating plate for anti-stick performance and extended service life.
• Optional narrow single reducer inserts and ISO single inserts.
• Fully integrated CNC hydraulic controller with PLC touch-screen interface for precise control.
• RFID technology for enhanced durability and simplified operator interaction.
• Designed for PE, PP and HDPE pipes; suitable for pipes and moulded fittings.
• Lightweight aluminium clamps and compact, space-saving design for easier transport and on-site use.

Applications

• Potable water systems
• Waste water treatment facilities
• Mining and industrial installations
• HDPE boat construction
• Geothermal heating and cooling projects
• Gas pipeline and municipal engineering pipeline applications

Technical specifications

• Model: SWT-V355/90A
• Welding range (O.D.): 90-355 mm
• Reducer inserts: 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315
• Power supply: 230V 50/60Hz
• Rated power: 5.25 kW
• Piston area: 20.02 cm²
• Net / Gross weight: 208 kg / 256 kg
• DuPont Teflon coated heating plate (anti-stick, extended life)
• Report storage/print capacity: 2000 records; USB download
• Integrated CNC hydraulic controller and PLC touch-screen interface
• RFID technology integrated
• Compatible materials: HDPE, PE, PP, PVDF
• Lightweight aluminium clamps
• Standards: DVS 2207, ISO 21307, ASTM F2620
• Optional: narrow single reducer inserts and ISO single inserts
