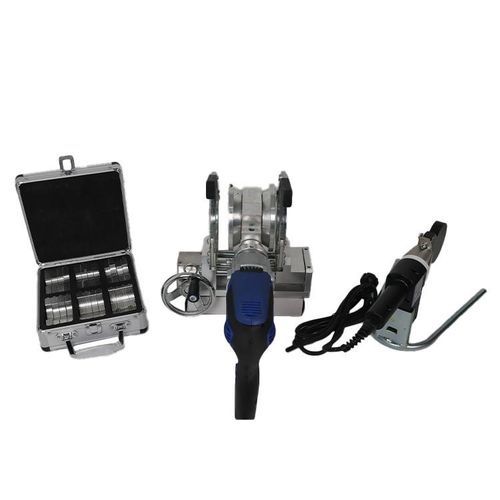

Butt welding machine MINI110

manualbenchtopfor pipes

Product Overview
Manual table butt fusion welding machine MINI110 is designed for welding thermoplastic pipes and fittings in water and gas systems. Constructed with an aluminum frame, it is portable and intended for on-site or workshop use. The unit features a DuPont Teflon-coated heating plate, an accumulator for pressure preservation and compensation, and conforms to DVS 2207, ISO 21307 and ASTM F2620 standards.

Key Features

• Portable, table-mounted design for workshop and site use
• Simple manual operation with single-layer clamp sets
• DuPont Teflon-coated heating plate for consistent heating
• Accumulator included for pressure preservation and compensation
• Compliance with DVS 2207, ISO 21307 and ASTM F2620
• 2-year quality warranty

Suitable Materials & Applications

• Welding materials: PE, PPH, PVDF, HDPE
• Typical applications: water distribution systems, gas pipelines, mining pipelines, civil drinking water and sewage networks

Specifications

• Model: MINI110
• Welding range (title/product line): 20-110 mm (1"-4" IPS)
• Welding range (table specification): 63-110 mm
• Heater power: 700 W
• Trimmer power: 800 W
• Single-layer clamp sizes: 63 mm, 75 mm, 90 mm
• Dimensions (L×W×H): 50 × 30 × 23 cm
• Gross weight: 16 kg
• Heating plate coating: DuPont Teflon
• Accumulator for pressure preservation/compensation included
