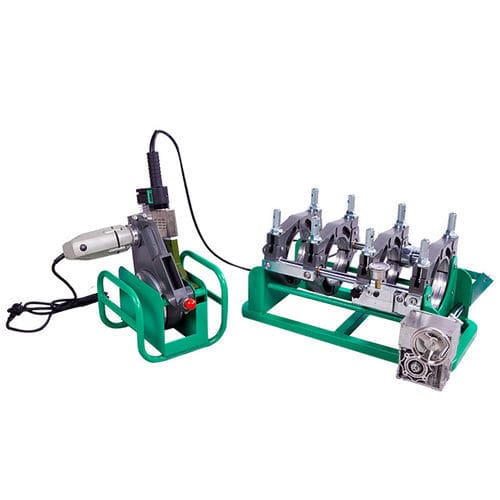

Butt welding machine SWT-V160MS

thermalmanualstandalone

The SWT-V160MS is a manual on-site butt-fusion (thermofusion) welding machine designed for controlled welding of thermoplastic pipes and fittings in water pipeline and related industrial systems. The unit facilitates on-site butt welding of pipes and fittings without additional base equipment by adjusting clamps and the drag bar.

Key features

• Precise pressure control via oil-pressure-type gauge installed inside the cylinder cavity with a seal ring — more accurate and stable than spring-pointer gauges.
• Compatible with MM‑Tech data logger for recording and exporting welding parameters.
• On-site manual butt-fusion design enabling welding of pipes and fittings (elbows, tees, wyes, flange necks) through clamp and drag-bar adjustment — no extra base required.
• Material compatibility: suitable for HDPE, PE, PP, PVDF and other thermoplastic materials used in fluid transport.

Applications

• Water supply systems
• Wastewater treatment
• Natural gas distribution
• Mining pipeline installation
• Agricultural irrigation
• Landfill systems
• Chemical industry piping
• Electronics and semiconductor industry piping
• HDPE boat construction and other industrial fluid-transfer applications

Technical specifications

• Welding range (O.D.): 50 mm – 160 mm
• Welding range (inch): 2" - 6" IPS
• Power supply: 220 V ±10%, 50/60 Hz
• Maximum temperature: 280 °C
• Gross weight: 74 KGS
• Packing material: plywood box
• Packing dimensions (examples): 450 × 480 × 420 mm; 380 × 420 × 570 mm
• Warranty: 24 months (replacement of main parts in case of manufacturing defects during warranty period)
