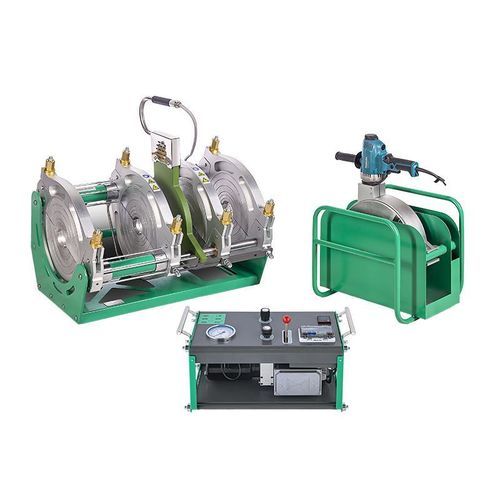

Butt welding machine SWT-V200/63SHP

for pipesfor plastic pipefor the plastics industry

Product Overview
MM-Tech manufactures aluminum-frame butt fusion welding machines intended for thermofusion of HDPE, PP and PVDF pipes. Models comply with ISO 21307 and ASTM F2620 standards and are specified for water and gas distribution, industrial and mining pipelines.

Key Features

• Hydraulic valves with cartridge design for simplified maintenance
• Trimmer driven by a worm gearbox and equipped with a Makita electric drill
• Outer and inner clamps machined from engraved aluminum for precision alignment
• Stainless-steel hydraulic hoses mounted on the frame to resist corrosion and cracking
• Heating plate with Dupont Teflon coating and stainless-steel junction box

Description
The SWT-V200/63SHP is a high-pressure butt fusion welding machine designed for PN25 HDPE pipe joints in the 63-200 mm range. Its machined aluminum construction provides dimensional accuracy and reduced weight for site use. The cutter/trimmer uses a worm-driven powertrain paired with a Makita drill for controlled trimming operations. The unit’s hydraulic system is built for continuous operation under industrial conditions.

Data Sheet
High Pressure Butt Fusion Welding Machine SWT-V200/63SHP Specifications

• Model: SWT-V200/63SHP
• Welding Range O.D. (mm): 63-200 mm
• Reducer Inserts: 63, 75, 90, 110, 125, 140, 160, 180
• Inserts Type: Multi / ISO / Single
• Piston Area: 6.27 cm²
• Welding Pressure Range: 0-180 BAR
• Power Supply: 220V, 50/60Hz
• Rated Power: 3 kW
• Heater Power: 1.5 kW
• Trimmer Power: 0.75 kW
• Pump Power: 0.75 kW
• Temperature Range: Maximum 320 ℃
• Packing Dimensions (examples): 840×460×550 mm; 500×470×660 mm; 670×360×490 mm
• Gross Weight: 156.55 kg

Applications

• Water infrastructure: welding supply and distribution mains with hermetic butt joints
• Gas distribution systems: producing leak-resistant joints for safe gas transport
• Industrial pipelines: fusion joints resistant to pressure, temperature and chemical exposure
• Mining: on-site pipeline welding for water and chemical transport under harsh conditions

Technical Specifications

• Model: SWT-V200/63SHP
• Welding Range O.D.: 63-200 mm
• Reducer Inserts: 63, 75, 90, 110, 125, 140, 160, 180
• Inserts Type: Multi / ISO / Single
• Piston Area: 6.27 cm²
• Welding Pressure Range: 0-180 BAR
• Power Supply: 220V, 50/60Hz
• Rated Power: 3 kW
• Heater Power: 1.5 kW
• Trimmer Power: 0.75 kW
• Pump Power: 0.75 kW
• Maximum Temperature: 320 ℃
• Packing Dimensions (examples): 840×460×550 mm; 500×470×660 mm; 670×360×490 mm
• Gross Weight: 156.55 kg
