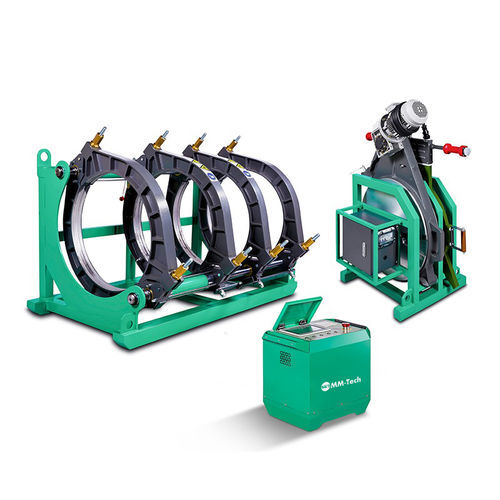

Butt welding machine SWT-V630/315A

automaticfor plastic pipefor thermoplastics

Product Overview
CNC automatic butt fusion welding machine for HDPE, PE, PP and PVDF pipes. Designed for industrial pipeline installation and maintenance, compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards. Compact and portable for on-site operations with high-precision hydraulic control.

Key Features

• Fully enclosed CNC hydraulic system for precise and stable welding control.
• PLC touchscreen with RFID user access for secure operator management.
• Onboard printing and USB export of welding reports; internal storage for up to 2000 records.
• Dupont Teflon-coated heating plate to minimize sticking and extend service life.
• Lightweight aluminium clamps and compact chassis for easier transport and site deployment.
• Suitable for HDPE, PE, PP and PVDF pipe materials in industrial and municipal applications.

Data Sheet

• Model: SWT-V630/315A
• Welding range (O.D.): 315-630 mm
• Reducer inserts: 315, 355, 400, 450, 500, 560 mm
• Power supply: 400 V 50/60 Hz
• Rated power: 11.50 kW
• Piston area: 23.06 cm²
• Machine weight (Net/Gross): 608 / 719 kg
• Heating plate: Dupont Teflon coating
• Operator interface: PLC touchscreen with RFID access
• Welding report: print and USB download (capacity 2000 reports)

Applications

• Potable water distribution networks
• Wastewater and sewage systems
• Mining and industrial pipelines
• HDPE boat construction and marine piping
• Geothermal heating and cooling installations

Technical specifications

• Model: SWT-V630/315A
• Welding range (O.D.): 315-630 mm
• Reducer inserts: 315, 355, 400, 450, 500, 560 mm
• Power supply: 400 V 50/60 Hz
• Rated power: 11.50 kW
• Piston area: 23.06 cm²
• Machine weight (Net/Gross): 608 / 719 kg
• Heating plate: Dupont Teflon coating (anti-stick)
• Operator interface: PLC touchscreen with RFID
• Report capacity: 2000 records, print and USB export
