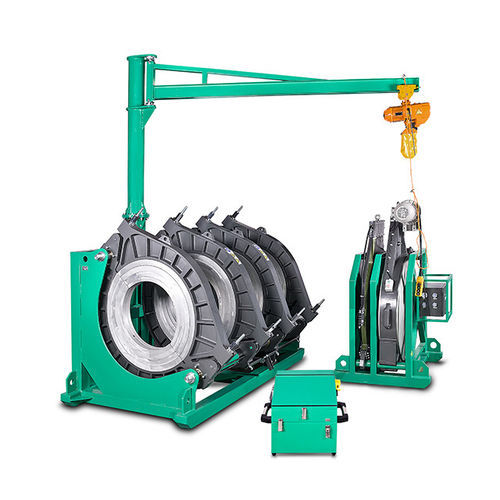

Butt welding machine SWT-V1000/630APLC-controlledfor pipesfor plastic pipe
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- PLC-controlled
- Applications
- for plastic pipe, for pipes, for the plastics industry
- Power supply
- 400V three-phase
- Other characteristics
- CNC, compact, hydraulic, programmable, ISO, with touch screen, with data logging
- Power
23,400 W
- Weld thickness
Max.: 1,000 mm
(39.4 in)Min.: 630 mm
(24.8 in)
Description
Product overview
Hydraulic CNC butt fusion welding machine designed for welding HDPE, PP and PVDF pipes in distribution and infrastructure projects. MM-Tech units comply with DVS 2207, ISO 21307 and ASTM F2620 standards and are engineered for on-site and workshop use across water supply, gas distribution and industrial installations.
Key features
Additional details
Machine includes a DuPont Teflon-coated heating plate and RFID-enabled data logging for enhanced durability and traceability. Lightweight aluminum clamps and compact design improve mobility for site operations. Ideal for manufacturers, contractors and distributors requiring repeatable, standards-compliant welds.
Applications
Suitable for welding HDPE, PP and PVDF pipes used in potable water, wastewater, mining, industrial piping, geothermal systems, municipal pipelines, gas distribution, aquaculture cages and agricultural irrigation.
Data sheet
Hydraulic Butt Fusion Welding Machine 630-1000mm Specifications
Model: SWT-V1000/630A
Welding Range O.D. (mm): 630-1000
Reducer Inserts: 630, 710, 800, 900
Power Supply: 400V 50/60Hz
Rated Power (kW): 23.4
Piston Area (cm²): 38.80
Overall N.W./G.W. (kg): 2400 / 2600
Technical specifications
Hydraulic CNC butt fusion welding machine designed for welding HDPE, PP and PVDF pipes in distribution and infrastructure projects. MM-Tech units comply with DVS 2207, ISO 21307 and ASTM F2620 standards and are engineered for on-site and workshop use across water supply, gas distribution and industrial installations.
Key features
- Fully enclosed, compact CNC hydraulic controller unit for precise pressure control
- PLC touch screen with RFID access for secure operator control and process management
- Onboard report printing and storage (up to 2000 reports); USB export for traceability
Additional details
Machine includes a DuPont Teflon-coated heating plate and RFID-enabled data logging for enhanced durability and traceability. Lightweight aluminum clamps and compact design improve mobility for site operations. Ideal for manufacturers, contractors and distributors requiring repeatable, standards-compliant welds.
Applications
Suitable for welding HDPE, PP and PVDF pipes used in potable water, wastewater, mining, industrial piping, geothermal systems, municipal pipelines, gas distribution, aquaculture cages and agricultural irrigation.
Data sheet
Hydraulic Butt Fusion Welding Machine 630-1000mm Specifications
Model: SWT-V1000/630A
Welding Range O.D. (mm): 630-1000
Reducer Inserts: 630, 710, 800, 900
Power Supply: 400V 50/60Hz
Rated Power (kW): 23.4
Piston Area (cm²): 38.80
Overall N.W./G.W. (kg): 2400 / 2600
Technical specifications
- Brand: MM-Tech
- Model: SWT-V1000/630A
- Compatible materials: HDPE, PE, PP, PVDF
- Welding range (O.D.): 630-1000 mm
- Reducer inserts available: 630, 710, 800, 900
- Power supply: 400V 50/60Hz
- Rated power: 23.4 kW
- Piston area: 38.80 cm²
- Net / gross weight: 2400 kg / 2600 kg
- Chassis: fully enclosed CNC hydraulic controller
- Operator interface: PLC touch screen with RFID technology
- Heating plate: DuPont Teflon coating
- Record features: weld report printing and storage (capacity 2000 reports) with USB export
- Standards: compliant with DVS 2207, ISO 21307, ASTM F2620
