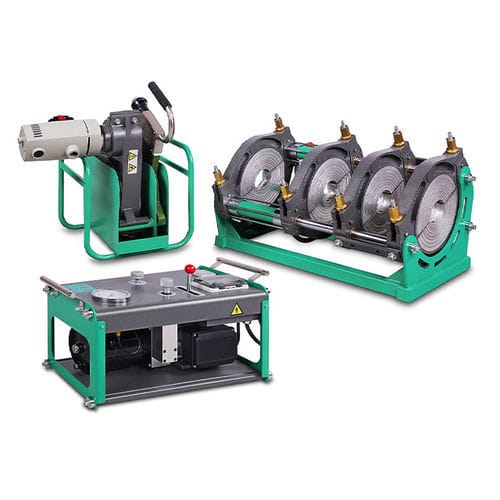

Butt welding machine SWT-V315/90H

manualfor pipesfor plastics

Product Overview
Hydraulic butt fusion welder designed for installation and repair of HDPE, PP and PVDF pipelines in water, gas, mining and industrial fluid systems. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards for butt fusion processes.

Key Features

• Circuit breaker with earth-leakage protection for operator and site safety.
• High-capacity solid relays to support heavier loads and extended service life.
• Advanced temperature-controlled switch for consistent heating plate performance.
• Integrated accumulator to stabilize hydraulic pressure during welding cycles.
• Safety relief valve mounted on the hydraulic block to prevent overpressure.

Description
The SWT-V315/90H is a hydraulic butt fusion machine engineered for reliable, repeatable fusion joints on pipes from 90 to 315 mm O.D. Its hydraulic drive and pressure accumulator ensure uniform heating and controlled cooling, delivering strong, long-lasting welds suitable for potable water, gas distribution and industrial pipelines.

Hydraulic Butt Fusion Welding Machine 90-315mm Data Sheet

• Model: SWT-V315/90H
• Welding Range O.D. (mm): 90-315
• Reducer Inserts: 90, 110, 125, 140, 160, 180, 200, 225, 250, 280
• Power Supply: 220V 50Hz
• Rated Power: 5.25 kW
• Piston Area: 20.02 cm²
• Overall M.W./G.W.: 189 kg / 234 kg

Applications

• Potable water and water distribution networks
• Gas distribution pipelines
• Wastewater and sewage systems
• Mining and industrial process pipelines
• HDPE structures in marine and boat construction
• Geothermal heating and cooling circuits
• Other industrial fluid transfer installations

Technical specifications

• Standards: DVS 2207, ISO 21307, ASTM F2620 (butt fusion)
• Suitable materials: HDPE, PP, PVDF
• Operating mode: Hydraulic butt fusion with pressure accumulator
• Transport weight (approx.): M.W. 189 kg / G.W. 234 kg
