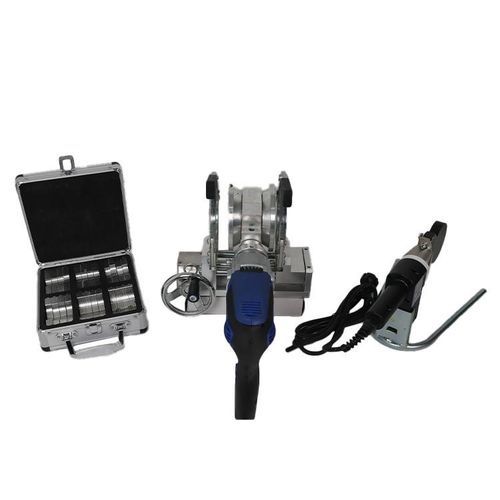

Butt welding machine MINI75

hot platemanualbenchtop

Introduction

The Table Manual Butt Fusion Welding Machine (MINI series) by Agua Water System is a portable manual table welder designed for butt fusion joining of thermoplastic pipes and fittings. It is suitable for water, gas and mining pipeline works and incorporates a Teflon-coated heating plate and an accumulator for pressure preservation and compensation.

Key features

• Portable, aluminum construction for on-site use and easy handling.
• Teflon (DuPont) coated heating plate for non-stick heating and uniform temperature transfer.
• Accumulator for pressure preservation and compensation during the welding cycle.
• Single-layer clamps for fast pipe clamping and changeover.
• Suitable for PE, PPH and PVDF pipe welding.
• Manufacturer warranty: 2 years.

Included components

• Single-layer clamp set (sizes depend on model).
• Heating plate and heater assembly (power by model).
• Trimmer / facing tool (800 W).
• Accumulator for pressure compensation.

Compatible materials

• PE, PPH, PVDF

Applications

• Civil potable water pipelines and sewage systems.
• Natural gas pipelines.
• Mining site piping and other industrial pipeline installations.

Technical specifications

• Models: MINI75, MINI110 (MINI series)
• Welding range: MINI75 = 20–75 mm; MINI110 = 63–110 mm
• Heater power: MINI75 = 350 W; MINI110 = 700 W
• Trimmer power: 800 W (both models)
• Single-layer clamps: MINI75 = 20, 25, 32, 40, 50, 63 mm; MINI110 = 63, 75, 90 mm
• Dimensions: MINI75 = 50 × 30 × 13 cm; MINI110 = 50 × 30 × 23 cm
• Gross weight: 16 kg (each)
