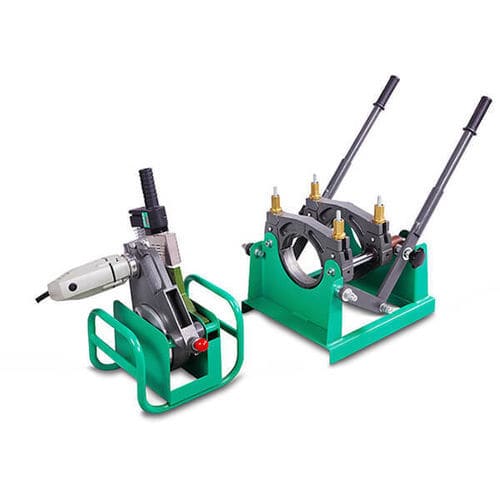

Butt welding machine SWT-V160M

hot platemanualstandalone

The SWT-V160M is a manual hand-push butt fusion welding machine by MM-Tech designed for butt welding PE pipes (50–160 mm) used in water supply and gas engineering projects. It performs butt welding of pipes and fittings without additional equipment and supports commonly used thermoplastic materials.

Key functions and highlights

• Used to butt weld pipes and fittings such as elbows, tees, wyes and flange necks without additional equipment.
• Suitable for welding plastic pipes and fittings made of HDPE, PE, PP, PVDF and other thermoplastic materials.
• Handle-mounted heating plate with a digital display for easy temperature monitoring.
• Teflon-coated heating plate with an independent temperature control system.
• Brass fastening screws for extended durability of wearing parts.
• Includes a trimmer equipped with a safety switch for enhanced operator safety.
• Provides support for both the milling cutter and the heating plate; tools and accessories are stored in a high-quality tooling box for protection and transport.

Applications

• Water supply systems and municipal engineering pipelines
• Wastewater treatment
• Natural gas and gas pipeline construction
• Mining and industrial fluid transfer
• Agricultural irrigation and landfill works
• HDPE boat construction, aquaculture floating cages, chemical and electronics industries

Technical characteristics / specifications

• Welding range O.D.: 50-160 mm
• Power consumption: 1.8 kW
• Power supply: 220 V ±10%, 50/60 Hz
• Temperature range: Max. 300 °C
• Gross weight: 59 kg
• Packing material: Plywood box
• Packing dimensions: 450 x 480 x 420 mm and 380 x 420 x 570 mm
