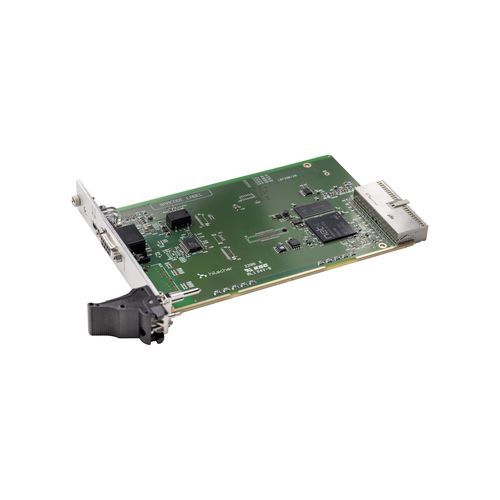

Fieldbus CompactPCI card CIFX 80-DP

USBRS-485PROFIBUS DP

Product name
The CIFX 80-DP is a CompactPCI PC card for PROFIBUS DP providing real-time communication for PC-based automation (configurable as Master or Slave). The card integrates Hilscher netX technology and operates autonomously to offload protocol processing from the host.

Overview
The cifX PC card family is a unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs on the card and process data is exchanged with the host via Dual-Port Memory (DPM) or DMA. All cifX cards share drivers and tools and can change protocols by loading different firmware. A variety of hardware options and software tools (device drivers, C-Toolkit, SYCON.net) enable flexible integration in industrial environments.

Highlights

• Universal PROFIBUS DP CompactPCI PC card (Master or Slave)
• Consistent user interface across protocols and card formats
• Easy system integration with a wide range of drivers
• Data access via Dual-Port Memory or Direct Memory Access (DMA)
• Operating temperature range up to +70 °C

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical specifications

• Product name: CIFX 80-DP
• Part number: 1280.410
• Brief description: CIFX CompactPCI PC card for PROFIBUS DP (Master or Slave) / PROFIBUS MPI device
• Function: Communication interface for CompactPCI and PROFIBUS
• Communication controller: netX 100 (Hilscher)
• RAM: 8 MB SDRAM
• FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5 %
• Maximum current (typical): 650 mA (at 3.3 V)
• Power connector: via CompactPCI bus
• Bus type: CompactPCI
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Bus transmission rate: 33 MHz
• Communication standard: PROFIBUS
• Interface type: isolated RS-485
• PROFIBUS connector: D-Sub female, 9-pin
• Isolation voltage: 1000 V DC (1 min test)
• Diagnostic interface: USB (Mini B, 5-pin)
• LEDs: SYS (system), COM (communication, duo LED)
• Operating temperature: -20 °C … +70 °C (air flow 0.5 m/s during measurement)
• Storage temperature: -40 °C … +85 °C
• Humidity: 10 % … 95 % RH, non-condensing
• Environment (UL): Pollution degree 2 for UL-compliant usage
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): 162.5 mm x 100 mm x 20 mm
• Mounting: CompactPCI slot (3.3 V)
• Configuration software: SYCON.net (master and slave), netX Configuration Tool (slave)
• RoHS: Yes
• UL certification: UL 508 (UL-File-Nr. E221530)
• CE: Yes
• UKCA: Yes
• Emission standard: EN 55011 / EN BS 55011
• Immunity standards: EN 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8 and EN 61000-6-2 (industrial)
