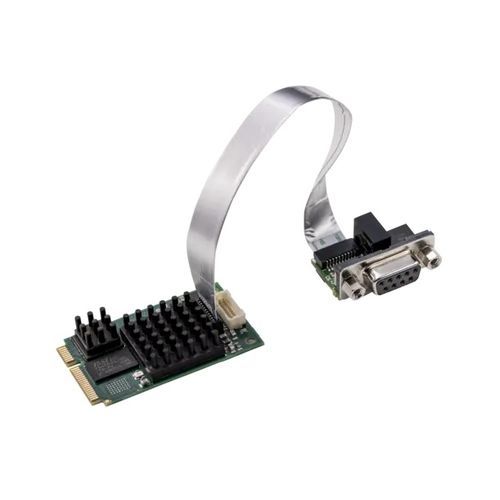

DMA PCI Express communication card CIFX 90E-DP\ET\F

with I/O processor

Overview
The cifX PC card family is a unified standard supporting Real-Time Ethernet and fieldbus systems for PC-based automation. The protocol stack runs autonomously on the card and data exchange with the host is performed via Dual-Port-Memory (DPM) or DMA. Cards share the same platform strategy, drivers and tools; protocol functionality can be changed by loading different firmware.

Key features

• Universal Mini PCI Express PROFIBUS DP card (Master or Slave)
• Consistent user interface across protocols and card formats
• Easy integration with a wide selection of drivers
• Data access via Dual-Port-Memory (DPM) or direct memory access (DMA)
• Separate network interface available (15 cm or 30 cm)
• Extended operating temperature up to +70 °C (with 0.5 m/s airflow)

Details
The card is available with multiple hardware options (various cable lengths, M12 connectors, additional NVRAM, 2-channel variants, separate network interfaces) to suit application requirements. A free C-Toolkit and a wide range of device drivers are supplied. The netX technology enables implementation of different Real-Time Ethernet protocols on the same hardware.

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical specifications

• Product name: CIFX 90E-DP\ET\F
• Reference (code): 1291.414
• Short description: cifX Mini PCI Express PROFIBUS DP Master or Slave / PROFIBUS MPI device with fieldbus cable connector for PROFIBUS assembly interface (AIFX-DP)
• Function: Mini PCI Express communication interface with PROFIBUS
• Communication controller (type): netX 100
• SDRAM memory: 8 MB
• Flash: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5%
• Maximum current (typical): 600 mA (at 3.3 V)
• Bus connector: via Mini PCI Express bus
• Bus type: Mini PCI Express, single-lane port
• Data access: DPM or DMA (direct memory access)
• Dual-Port-Memory size: 64 KB
• Data width: 32 bit
• Bus speed (bus): 33 MHz
• Communication standard: PROFIBUS
• PROFIBUS interface type: RS-485, isolated
• Fieldbus connector: Fieldbus cable connector X3 (JST 10FMN-BMT-A-TF(LF)(SN), pitch 1.0 mm) for connecting PROFIBUS assembly interface AIFX-DP
• Display/LED: SYS status LED
• Operating temperature range: -20 °C ... +70 °C (measured with 0.5 m/s airflow)
• Storage temperature range: -40 °C ... +85 °C
• Humidity: relative humidity 10% … 95%, no condensation
• Operating altitude: 0 m … 2000 m
• Dimensions (L x W x H): 51 mm x 30.2 ±0.1 mm x 12.5 mm
• Mounting/installation: Mini PCI Express system connector (3.3 V), X1/X2 = single-lane
• Configuration software (master/slave): SYCON.net
• Configuration tool for slave: netX configuration tool
• RoHS compliance: Yes
• EMC markings: CE: Yes; UKCA: Yes
• Emissions: EN 55011 / EN BS 55011
• Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8; EN 61000-6-2 (industrial environments)
• Related products/variants: 30 cm cable variant: CIFX 90E-DP\ET\F/30 (code 1291.414/30)
• Master licence available: NXLIC-MASTER (code 8211.000)
