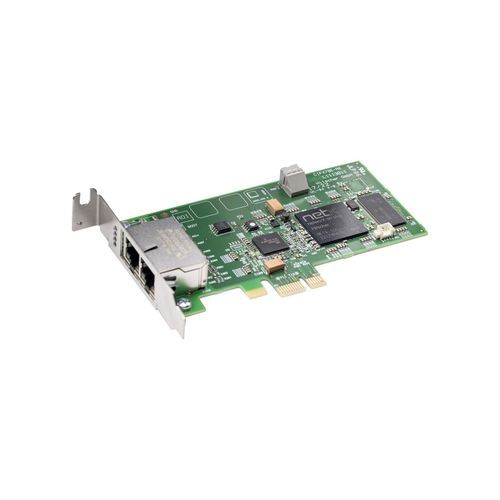

DMA PCI Express communication card CIFX 70E-RE

digitaldual-outputwith I/O processor

Overview
The cifX PC card family provides a unified standard for PC-based automation, supporting all Real-Time Ethernet and fieldbus systems. The protocol stack runs autonomously on the card and exchanges process data with the host via Dual-Port-Memory (DPM) or DMA. Hilscher netX technology enables multiple Real-Time Ethernet protocols on a single hardware platform; protocol changes are performed by loading different firmware. Hardware options include M12 connectors, additional NVRAM, extended temperature range, 2-channel variants and remote network interfaces. A broad range of device drivers and a free C-Toolkit are available for integration.

Key features

• Universal Real-Time Ethernet PC card (Master or Slave)
• Uniform user interface across protocols and card formats
• Extensive driver support for easy integration
• Data access via Dual-Port-Memory (DPM) or DMA
• Unique slot number set by rotary switch
• Operational up to +65 °C (extended temperature option)

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Technical specifications

• Product name: CIFX 70E-RE
• Part number: 1259.100
• Description: cifX low-profile PCI Express PC card, Real-Time Ethernet Master or Slave
• Function: Communication interface with PCI Express and Ethernet
• Communication controller: netX 100
• Integrated RAM: 8 MB SDRAM
• Integrated FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5%
• Typical current: 800 mA (at 3.3 V)
• Connector: via PCI Express bus
• Bus type: PCI Express x1 (One Lane)
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Transmission rate: 2 GBit/s
• Ethernet standard: 10BASE-T / 100BASE-TX (isolated)
• Ethernet connectors: 2 x RJ45
• Isolation voltage: 1000 V DC (tested 1 minute)
• LEDs: SYS, COM0, COM1, RJ45 ch0/ch1 Link/Activity (yellow/green)
• Operating element: Rotary switch for slot number (card ID)
• Operating temperature: 0 °C to +65 °C (air flow 0.5 m/s during measurement)
• Storage temperature: -40 °C to +85 °C
• Humidity: 10 % – 95 % RH, no condensation
• Altitude: 0 m – 2000 m
• Dimensions (L x W x H): 119 mm x 69 mm x 18.5 mm
• Configuration software: SYCON.net (master/slave), netX Configuration Tool (slave)
• RoHS: Yes
• UL: Certified to UL 508 (UL-File-Nr. E221530)
• Conformance: CE, UKCA
• EMC / Standards: EN 55011; Immunity: EN 61000-4-2/3/4/5/6/8; EN 61000-6-2
