CANopen PCI Express communication card CIFX 90E-2CODNETF

DeviceNetDMA

Product Overview

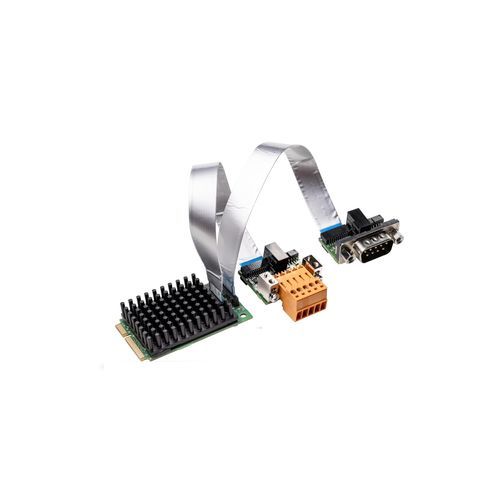

The CIFX 90E-2CO\DN\ET\F is a Mini PCI Express 2-channel communication card for PC-based automation. It provides one CANopen and one DeviceNet interface, each configurable as Master or Slave. The protocol stack runs autonomously on the card (netX firmware) and exchanges process data with the host via Dual-Port-Memory or Direct Memory Access (DMA). A uniform Hilscher cifX driver and toolset ensure identical integration across protocols and card formats. Hardware options include detached network interfaces (15 cm or 30 cm cable), M12 connectors, optional NVRAM and extended temperature variants up to 70 °C.

Highlights

• One CANopen and one DeviceNet interface (configurable as Master or Slave) in a single Mini PCI Express slot
• Uniform user interface for all protocols and card formats
• Easy integration via a wide range of device drivers and a free C-Toolkit
• Data access via Dual-Port-Memory or Direct Memory Access (DMA)
• Detached network interface available (15 cm or 30 cm cable)
• Extended operating temperature variants up to 70 °C
• Protocol changeable by loading different netX firmware

Supported protocols

• DeviceNet Master
• CANopen Master
• DeviceNet Slave
• CANopen Slave

Order information
Product name | Part number | Brief description
CIFX 90E-2CO\DN\ET\F | 1293.574 | 2-channel PC card Mini PCI Express - CANopen/DeviceNet
NXLIC-MASTER 2 LICENSES | 8212.000 | Two Master licenses
CIFX 90E-2CO\DN\ET\F/30 | 1293.574/30 | 2-channel PC card Mini PCI Express - CANopen/CANopen for extended temperature range incl. a 30-cm cable

Technical specifications

• Form factor: Mini PCI Express (half size card)
• Channels: 2 channels
• Fieldbus interfaces: 1 x CANopen and 1 x DeviceNet (Master or Slave)
• Host interface: Dual-Port-Memory or Direct Memory Access (DMA)
• Network interface: detached network interface (cable options 15 cm / 30 cm)
• Temperature: extended operating temperature variants (up to 70 °C)
• Firmware: protocol selectable by loading different netX firmware
• Software: uniform Hilscher cifX driver and tools; C-Toolkit available
• Hardware options: M12 connectors, optional NVRAM, heat-sink / no-heat-sink variants and 2-channel models
• Typical ordering references: 1293.574 and variants (see order information)
