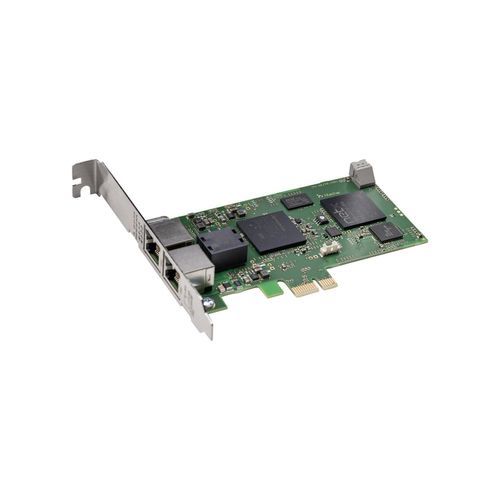

DMA PCI Express communication card CIFX 50E-CCIES

Product overview
The CIFX 50E-CCIES is a PCI Express PC card that implements CC-Link IE Field Slave functionality for PC-based automation. The protocol stack runs autonomously on the card using Hilscher netX technology; process data is exchanged with the host via Dual-Port Memory or DMA. All cifX cards use the same unified driver and toolset, and the active protocol can be changed by loading different firmware.

Highlights

• CC-Link IE Field Slave PC card
• Operates as an intelligent station within CC-Link IE networks
• Fixed physical rate: 1 Gbit/s
• Acyclic communication supported via SLMP (Simple Message Protocol)
• Uniform user interface across all cifX protocols and card formats
• Integration supported by a variety of device drivers and a free C-Toolkit

Protocols supported

• CC-Link IE Field (Slave)

Order information

• Product: CIFX 50E-CCIES — Part number: 1251.700 — PCI Express PC card, CC-Link IE Field

Technical specifications

• Form factor: PCI Express PC card
• Protocol: CC-Link IE Field (Slave)
• Fixed baud rate: 1 Gbit/s
• Acyclic communication: SLMP (Simple Message Protocol)
• Host interface: Dual-Port Memory or DMA (Direct Memory Access)
• Unified Hilscher driver and tools across protocols and card formats
• Based on Hilscher netX technology — protocol selectable via firmware
• Available hardware options: various cable lengths, M12 connectors, optional NVRAM, extended temperature variants, 2-channel cards, detached network interfaces
• Available device drivers and free C-Toolkit for integration
• Part number (order code): 1251.700
