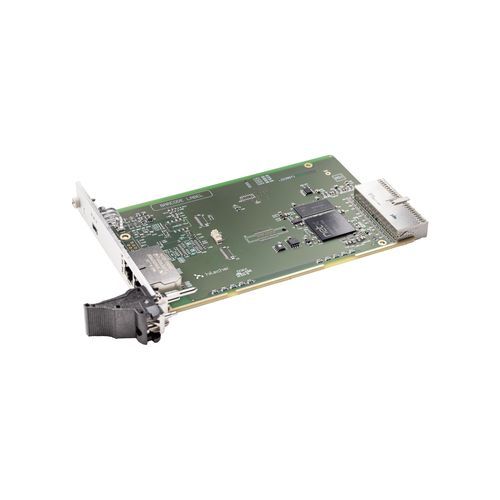

Modbus CompactPCI card CIFX 80-RE

Ethernetserial

Overview
The cifX PC card family provides a unified standard for Real-Time Ethernet and Fieldbus on PC-based automation. The protocol stack runs autonomously on the card and exchanges process data with the host via dual-port memory (DPM) or DMA. The netX hardware platform allows protocol changes by loading different firmware and enables a common driver and toolset across protocols and card formats. Multiple hardware options (cable lengths, M12 connectors, additional NVRAM, extended temperature versions, 2-channel cards, detached network interfaces) enable tailored system integration.

Highlights

• CompactPCI communication card for Real-Time Ethernet (Master or Slave)
• Unified configuration tools (SYCON.net / netX Configuration Tool)
• Data access via dual-port memory or direct memory access (DMA)
• Flexible hardware variants and extended operating temperature up to +70 °C
• Wide driver support and free C-Toolkit for integration

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Technical specifications

• Product name: CIFX 80-RE
• Part number: 1280.100
• Description: CompactPCI cifX PC card for Real-Time Ethernet Master or Slave
• Function: Communication interface with CompactPCI and Ethernet
• Communication controller: netX 100
• RAM: 8 MB SDRAM
• FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5 %
• Typical current: 650 mA (at 3.3 V)
• Power/system connector: via CompactPCI bus
• Bus type: CompactPCI (3.3 V)
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Bus clock: 33 MHz
• Communication standard: Ethernet
• Interface: 10BASE-T / 100BASE-TX, isolated
• Ethernet connectors: 2 x RJ45
• Isolation voltage: 1000 V DC (1 min)
• Diagnostic interface: USB Mini-B (5-pin)
• LEDs: SYS, COM0, COM1; RJ45 channel LEDs (link/activity)
• Operating temperature: 0 °C to +70 °C (with 0.5 m/s airflow)
• Storage temperature: -40 °C to +85 °C
• Humidity: 10 % to 95 % RH, no condensation
• Pollution degree: 2 (environment)
• Altitude: 0 m to 2000 m
• Dimensions (L×W×H): 162.5 mm × 100 mm × 20 mm
• Mounting: CompactPCI slot (3.3 V)
• Configuration software: SYCON.net (master & slave), netX Configuration Tool (slave)
• RoHS: Yes
• UL: Certified to UL 508 (UL-File-Nr. E221530)
• EMC / Conformity: CE, UKCA
• Emission: EN 55011 / EN BS 55011
• Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2 (industrial)
