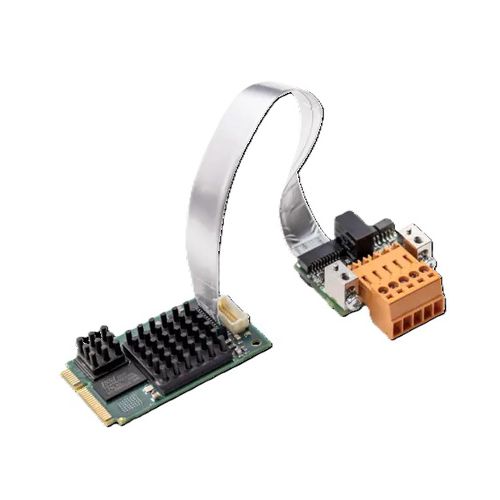

DMA PCI Express Card CIFX 90E-DNETF

Product overview
The cifX PC card family is a unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs autonomously on the PC card and process data is exchanged with the host via Dual-Port-Memory (DPM) or DMA. All PC cards share the same driver and tools regardless of protocol and card format. Hilscher netX technology enables multiple Real-Time Ethernet protocols on one hardware platform; protocol change is performed by loading different firmware.

Highlights

• Universal DeviceNet PC card (Master or Slave)
• Uniform user interface for all protocols and card formats
• Easy integration with a wide range of drivers
• Data access via dual-port memory or direct memory access (DMA)
• Includes a detached network interface (15 cm or 30 cm)
• Extended operating temperature up to +70 °C

Protocols supported

• DeviceNet Master
• DeviceNet Slave

Technical data (summary)
Product name: CIFX 90E-DN\ET\F
Part number: 1291.514
Brief description: PC Card cifX Mini PCI Express DeviceNet Master or Slave - with cable connector fieldbus for DeviceNet assembly interface (AIFX-DN)
Function: Communication interface with Mini PCI Express and DeviceNet interface
Communication controller type: netX 100
Integrated memory: 8 MB SDRAM; 4 MB serial Flash EPROM
Power supply: +3.3 V DC ±5 % (typical current 600 mA at 3.3 V)
Connector: via Mini PCI Express Bus
System interface: Mini PCI Express, one-lane port (X1)
Data access: DPM or DMA; Dual-port memory size: 64 KB; Data width: 32 bit; Transmission rate: 33 MHz
Communication standard: DeviceNet; Interface type: ISO-11898 according to DeviceNet specification, optically isolated; Connector: Cable Connector Fieldbus X3 (to connect AIFX-DN)
Displays: LED display SYS (system status LED)
Permitted ambient conditions: Operating temperature range -20 °C ... +70 °C (air flow during measurement: 0.5 m/s); Storage temperature range -40 °C ... +85 °C; Humidity 10 % … 95 % relative (no condensation permitted); Altitude 0 m … 2000 m
Dimensions (L x W x H): 51 mm x 30.2 +/- 0.1 mm x 12.5 mm
Mounting/Installation: PCI Express Mini system connector (3.3 V), X1/X2 = one-lane
Configuration software: SYCON.net (master & slave); netX Configuration Tool (slave)
Conformity: RoHS: Yes; CE and UKCA: Yes
EMC / Immunity: Meets EN 55011, EN 61000-4-2/3/4/5/6/8 and EN 61000-6-2 (industrial environments)
