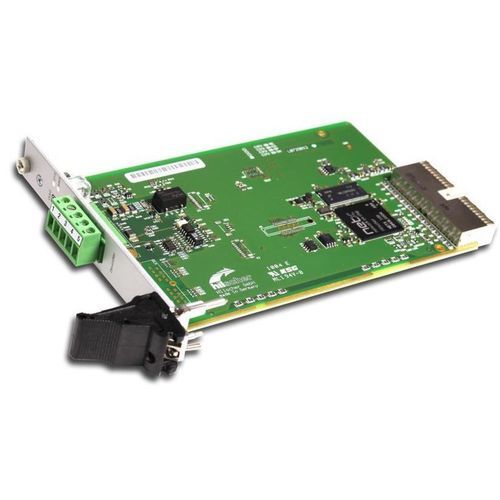

Fieldbus CompactPCI card CIFX 80-DN

USBDeviceNet

Product overview The cifX PC card family provides a unified standard for Real-Time Ethernet and Fieldbus systems in PC-based automation. The protocol stack runs autonomously on the card and exchanges process data with the host via Dual-Port-Memory (DPM) or DMA (Direct Memory Access). With the netX technology, a single hardware platform supports multiple protocols by firmware change. Hardware options include different cable lengths, M-12 connectors, optional NVRAM, extended temperature range, 2-channel variants and detached network interfaces, enabling configuration for varied industrial applications.

Highlights

• Universal DeviceNet PC card configurable as Master or Slave
• Unified user interface across protocols and card formats
• Wide driver support and free C-Toolkit for easy integration
• Data access via dual-port memory (DPM) or DMA
• Operational temperature range up to +70 °C (with airflow)

Supported protocols

• DeviceNet Master
• DeviceNet Slave

Technical data (extracted table) Product name: CIFX 80-DN
Part number: 1280.510
Brief description: PC Card cifX Compact PCI DeviceNet Master or Slave
Function: Communication interface with Compact PCI and DeviceNet interface
Communication controller - Type: netX 100
Integrated Memory - RAM: 8 MB SDRAM
Integrated Memory - FLASH: 4 MB serial Flash EPROM
Power supply - Supply voltage: +3.3 V DC ±5 %
Power supply - Maximum current (typically): 650 mA (at 3.3 V)
Connector: via Compact PCI Bus
System interface - Bus type: Compact PCI
Data access: DPM or DMA (Direct Memory Access)
Dual-port memory size: 64 KB
Data width: 32 bit
Transmission rate: 33 MHz
Communication interface - Communication standard: DeviceNet
Interface type: ISO-11898 according to DeviceNet specification, optically isolated
Connector (DeviceNet): COMBICON, male, 5-pin
Isolation voltage: 1000 V DC (tested for 1 minute)
Diagnostic interface - Type: USB
Diagnostic connector: Mini B USB Plug, 5-pin
Displays - LED display: SYS (System status LED), MNS (Module Network Status duo LED)
Permitted ambient conditions - Operating temperature range: -20 °C ... +70 °C (Air flow during measurement: 0.5 m/s)
Storage temperature range: -40 °C ... +85 °C
Humidity: 10 % … 95 % relative humidity, no condensation permitted
Environment: For UL compliant usage: The device must be used in a pollution degree 2 environment.
Altitude: 0 m … 2000 m
Device - Dimensions (L x W x H): 162.5 mm x 100 mm x 20 mm
Mounting/Installation: Compact PCI slot (3.3 V)
Configuration: Configuration software for master and Slave: SYCON.net; Configuration software Slave: netX Configuration Tool
Conformity - RoHS: Yes
UL certification: UL (device certified according to UL 508) - UL file: UL-File-Nr. E221530
Conformance with EMC directives - CE sign: Yes; UKCA sign: Yes; Emission: EN 55011 / EN BS 55011; Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2

Specifications / technical specifications

• Product name: CIFX 80-DN
• Part number: 1280.510
• Protocol: DeviceNet (Master or Slave)
• Controller: netX 100
• RAM: 8 MB SDRAM
• Flash: 4 MB serial Flash EPROM
• Dual-port memory: 64 KB
• Data width: 32 bit
• Host bus: Compact PCI (3.3 V), transmission rate 33 MHz
• Supply voltage: +3.3 V DC ±5 %, typical current 650 mA
• DeviceNet interface: ISO-11898, optically isolated; COMBICON male 5-pin connector
• Isolation voltage: 1000 V DC (1 minute)
• Diagnostic: Mini B USB connector
• LEDs: SYS and MNS
• Operating temperature: -20 °C to +70 °C (with airflow 0.5 m/s)
• Storage temperature: -40 °C to +85 °C
• Humidity: 10–95 % RH, no condensation
• Dimensions: 162.5 x 100 x 20 mm; mounting in Compact PCI slot (3.3 V)
• Standards/Approvals: RoHS compliant; UL 508 (UL-File E221530); EMC: EN 55011, EN 61000 series, EN 61000-6-2
