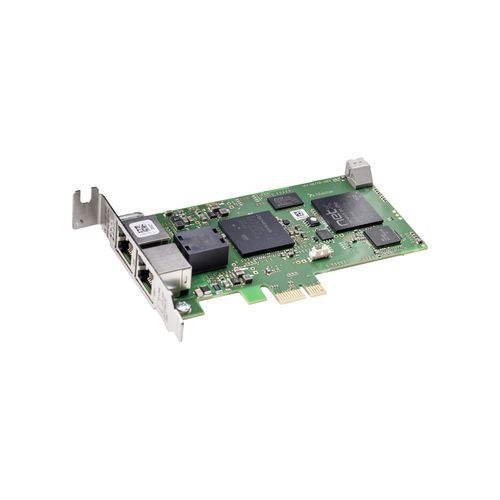

DMA PCI Express communication card CIFX 70E-CCIES

Overview
The cifX PC card family is the unified standard supporting all Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs autonomously on the PC card and process data is exchanged with the host via Dual-Port-Memory or DMA (Direct Memory Access). Thanks to the Hilscher Platform Strategy, all cifX cards use the same driver and tools regardless of protocol and card format. Hilscher netX technology enables multiple Real-Time Ethernet protocols on a single hardware platform; the communication protocol can be changed by loading different firmware.

Highlights

• CC-Link IE Field Slave PC card
• Intelligent station in the CC-Link IE network
• Fixed physical baud rate: 1 Gbit/s
• Acyclic communication via SLMP
• Unified user interface across protocols and card formats
• Easy integration with a wide range of drivers

Protocols supported

• CC-Link IE Field Slave

Order information
Product name | Part number | Brief description
CIFX 70E-CCIES | 1259.700 | Low-profile PCI Express PC card - CC-Link IE Field Slave

Technical specifications

• Model: CIFX 70E-CCIES
• Manufacturer: Hilscher
• Form factor: Low-profile PCI Express (PC card)
• Protocol: CC-Link IE Field Slave
• Station type: Intelligent station in the CC-Link IE network
• Fixed physical baud rate: 1 Gbit/s
• Acyclic communication: Supported via SLMP
• Protocol stack execution: Autonomous on the PC card
• Host interface: Dual-Port-Memory or DMA (Direct Memory Access)
• Common driver and tools across the cifX family (Hilscher Platform Strategy)
• Hardware variants: different cable lengths, M12 connectors, optional NVRAM, extended temperature ranges, 2-channel cards, detached network interfaces
• Upgradeable protocol via netX-based firmware
• Part number (order code): 1259.700
