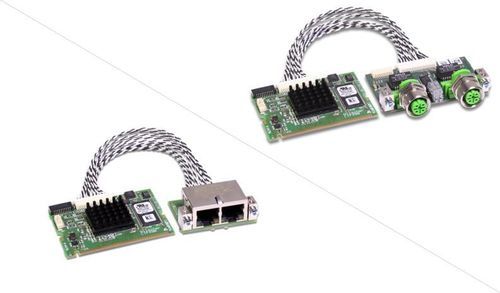

Isolated communication card CIFX 90-REF

2-channel

Description
The cifX Mini PCI PC card CIFX 90-RE\F provides a dedicated Real-Time Ethernet communication interface for PC-based automation. The protocol stack runs autonomously on the card (netX 100), while process data is exchanged with the host via Dual-Port-Memory (DPM) or DMA. The common Hilscher platform and driver set enable the same integration workflow irrespective of protocol or card format. Firmware-based protocol switching allows one hardware platform to support multiple Real-Time Ethernet standards.

Highlights

• Mini PCI Real-Time Ethernet interface (configurable as Master or Slave)
• Autonomous protocol stack on netX 100 controller
• Data access via Dual-Port-Memory (64 KB) or DMA
• Standard Mini PCI form factor (3.3 V) with detached Ethernet connector option
• Operating range up to +70 °C (extended options available)
• Wide driver and tool support including SYCON.net and C-Toolkit

Product description (additional)
Hardware options include different cable lengths, optional M12 connectors, additional NVRAM, 2-channel variants and detached network interfaces. The cifX portfolio is continually extended with new protocols and formats (e.g., M.2, mini PCIe half-size, CC-Link IE Field). A comprehensive driver library and configuration tools (SYCON.net, netX Configuration Tool) support integration into PC-based automation systems.

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Technical specifications

• Product name: CIFX 90-RE\F
• Part number: 1290.100
• Brief description: cifX Mini PCI PC card for Real-Time Ethernet (Master/Slave) with cable connector for Ethernet assembly interface (AIFX-RE)
• Controller: netX 100
• Integrated RAM: 8 MB SDRAM
• Integrated FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5 %
• Typical current: 650 mA @ 3.3 V
• Connector (power/system): Mini PCI bus (Type III system connector)
• Bus type: Mini PCI
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• System bus rate: 33 MHz
• Communication standard: Ethernet (10BASE-T/100BASE-TX, isolated)
• Ethernet connector: Cable Connector Ethernet X4 (JST SM20B-SRSS-TB(LF)(SN)) for AIFX-RE
• Indicators: SYS system status LED
• Operating temperature: 0 °C to +70 °C (air flow 0.5 m/s during measurement)
• Storage temperature: -40 °C to +85 °C
• Humidity: 10 %–95 % RH, non-condensing
• Environment (UL): Pollution degree 2
• Altitude: 0 m to 2000 m
• Dimensions (L x W x H): 60 mm x 45 mm x 9.5 mm
• Mounting: Mini PCI Socket (3.3 V), Type III System Connector
• Configuration software: SYCON.net (master & slave), netX Configuration Tool (slave)
• Certifications: RoHS, CE, UKCA, UL 508 (UL-File-Nr. E221530)
• EMC / Conformance: EN 55011; Immunity: EN 61000-4-x series, EN 61000-6-2 (industrial)
