PCI Express communication card CIFX 90E-RENHSF series

Product

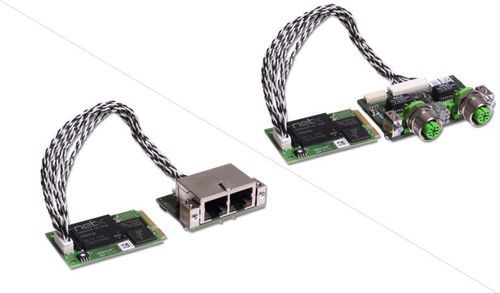

The CIFX 90E-RE\NHS\F is a Mini PCI Express PC card without heat sink for Real-Time Ethernet communication, designed for PC-based automation.

Highlights

• Universal Real-Time Ethernet PC card (Master or Slave)
• Uniform user interface across protocols and card formats
• Easy integration via a broad range of device drivers
• Data access via Dual-Port-Memory (DPM) or DMA
• Includes detached network interface (15 cm or 20 cm), optional with M12 sockets
• Delivered without heat sink

Description
The cifX PC card family provides a unified standard for all Real-Time Ethernet and Fieldbus systems in PC-based automation. The protocol stack runs autonomously on the card and exchanges process data with the host via DPM or DMA. Hilscher’s netX technology implements multiple Real-Time Ethernet protocols on a single hardware device; protocols can be changed by loading different firmware.

Various hardware options (cable lengths, M12 connectors, additional NVRAM, extended temperature, 2-channel variants, detached interfaces) address diverse application needs. A broad set of device drivers and a free C-Toolkit support integration and development.

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic (Slave)
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• EtherNet/IP Adapter
• EtherCAT Slave

Technical specifications

• Product name: CIFX 90E-RE\NHS\F
• Part number: 1291.108
• Brief description: PC Card cifX Mini PCI Express for Real-Time Ethernet Master or Slave (without heat sink)
• Function: Communication interface with Mini PCI Express and Ethernet
• Communication controller: netX 100
• Integrated RAM: 8 MB SDRAM
• Integrated FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5 %
• Maximum current (typical): 800 mA (at 3.3 V)
• Power connector: via Mini PCI Express bus
• Bus type (system interface): Mini PCI Express, one-lane (X1)
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Transmission rate (bus): 33 MHz
• Communication standard: Ethernet (10BASE-T / 100BASE-TX), isolated
• Ethernet connector: Cable Connector Ethernet X4 (JST BM20B-SRDS-G-TFC, pitch 1.0 mm) for AIFX-RE
• Indicators: LED display - SYS (system status)
• Operating temperature: 0 °C … +45 °C
• Storage temperature: -40 °C … +85 °C
• Humidity: 10 % … 95 % RH, no condensation
• Environment (UL): pollution degree 2
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): 51 mm x 30.2 mm ±0.1 x 10.8 mm
• Mounting: PCI Express Mini system connector (3.3 V), X1 = one-lane
• Configuration software: SYCON.net
• Conformity: RoHS: Yes
• UL certification: according to UL 508, UL file no. E221530
• EMC / Directives: CE and UKCA: Yes
• Emission standard: EN 55011 / EN BS 55011
• Immunity standards: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2
