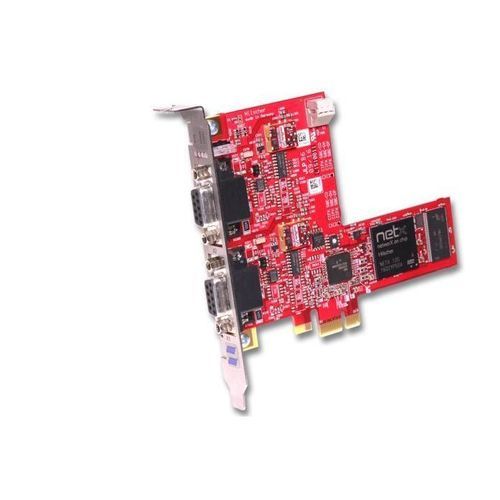

Digital PCI Express communication card CIFX 50E-2DP

dual-outputwith I/O processor

Product overview
The CIFX 50E-2DP is a 2-channel PCI Express PC card for PROFIBUS DP (Master or Slave) that provides deterministic communication for PC-based automation. The cifX family executes the protocol stack autonomously on the card and exchanges process data with the host via Dual-Port-Memory (DPM) or DMA. Hilscher netX technology enables support of multiple Real-Time Ethernet and Fieldbus protocols via firmware.

Highlights

• Two PROFIBUS DP interfaces (configurable as Master or Slave) in a single PCI Express slot
• Uniform user interface and tools for all protocols and card formats
• Wide driver and tool support for straightforward integration (including C-Toolkit)
• Data access via Dual-Port-Memory (DPM) or direct memory access (DMA)
• Unique slot number assignment via rotary switch
• Extended operating temperature range up to +70 °C (with specified airflow)

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical data (selected key values)
Product name: CIFX 50E-2DP
Part number: 1253.410
Brief description: PC card cifX PCI Express 2-channel PROFIBUS DP Master or Slave
Function: Communication interface with PCI Express and 2 × PROFIBUS interfaces
Communication controller: netX 100
Integrated memory - RAM: 8 MB SDRAM
Integrated memory - FLASH: 4 MB serial Flash EPROM
System interface - Bus type: PCI Express, One Lane Port (x1)
Transmission rate: 2 GBit/s
Data access: DPM or DMA (Direct Memory Access)
Data width: 32 bit
Communication interface - Standard: PROFIBUS (RS-485, isolated)
Isolation voltage: 1000 V DC (tested for 1 minute)
Connector: D-Sub, female, 9-pin (×2)
Power supply - Voltage: +3.3 V DC ±5 %
Power supply - Typical current at 3.3 V: 840 mA
Indicators: SYS (system status LED); COM0 and COM1 (duo LEDs)
Operating element: Rotary switch for slot number (card ID) assignment
Operating temperature range: -20 °C … +70 °C (measured with 0.5 m/s airflow)
Storage temperature range: -40 °C … +85 °C
Humidity: 10 % … 95% RH, no condensation allowed
Altitude: 0 m … 2000 m
Device dimensions (L × W × H): 120 mm × 94.5 mm × 18.5 mm
Mounting: PCI Express x1 slot (3.3 V)
Approvals: RoHS: Yes; CE: Yes; UKCA: Yes; UL certification: UL 508 (UL-File-Nr. E221530)
Configuration software: SYCON.net

Characteristics / technical specifications

• Model: CIFX 50E-2DP
• Part number: 1253.410
• Protocol channels: 2 × PROFIBUS DP (Master or Slave)
• Controller: netX 100
• RAM: 8 MB SDRAM; Flash: 4 MB serial Flash EPROM
• Host interface: PCI Express x1 (3.3 V), 2 GBit/s
• Data access: Dual-Port-Memory (DPM) or DMA
• Electrical interface: isolated RS-485; isolation 1000 V DC
• Connectors: 2 × D-Sub 9-pin (female)
• Supply: +3.3 V DC ±5 %, typical current 840 mA
• Indicators: SYS, COM0, COM1 LEDs
• Operating temperature: -20 °C to +70 °C (with specified airflow)
• Dimensions: 120 × 94.5 × 18.5 mm; mounting in PCIe x1 slot
• Approvals: CE, UKCA, RoHS, UL 508 (UL-File-Nr. E221530)
