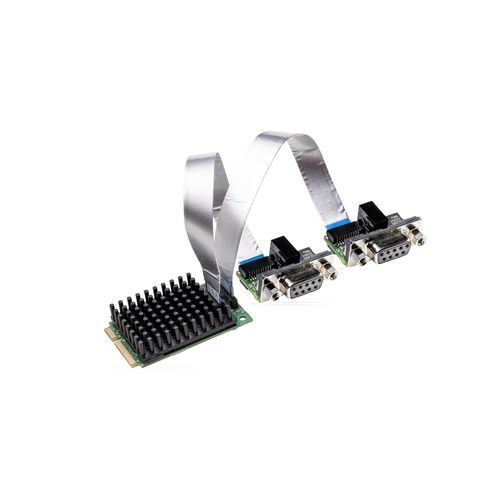

DMA PCI Express communication card CIFX 90E-2DPETF

dual-output

Overview
The cifX PC card family provides a unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs independently on the card and exchanges process data with the host via Dual-Port Memory or DMA. All cifX cards use the same driver and tools regardless of protocol or card format. netX technology enables multiple Real-Time Ethernet protocols on a single hardware platform by changing firmware.

Key features

• Two PROFIBUS DP interfaces (Master or Slave) in a single Mini PCI Express slot
• Uniform user interface across protocols and card formats
• Easy integration with a wide range of drivers
• Data access via Dual-Port Memory or DMA
• Includes separate network interface (15 cm or 30 cm cable)
• Extended operating temperature up to 70 °C

Extended description
Multiple hardware options (different cable lengths, M12 connectors, additional NVRAM, extended temperature ranges, 2-channel cards, separate network interfaces) allow adapting the solution to the application. A broad selection of device drivers and a free C-Toolkit are available for integration.

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Variants
Product name | Product code | Short description
CIFX 90E-2DP\ET\F | 1293.414 | Mini PCI Express 2-channel card - PROFIBUS DP/PROFIBUS DP
NXLIC-MASTER 2 LICENSES | 8212.000 | Two Master licenses
CIFX 90E-2DP\ET\F/30 | 1293.414/30 | Mini PCI Express 2-channel card with extended temperature range, includes 30 cm cable

Technical specifications

• Form factor: Mini PCI Express, dual-channel
• Protocol: PROFIBUS DP (Master or Slave)
• Data access: Dual-Port Memory or DMA
• Separate network interface available (15 cm or 30 cm cables)
• Hardware options: additional NVRAM, M12 connectors, various cable lengths
• Extended temperature range: up to 70 °C
• Same driver interface and tools across the cifX family
• Main model / product code: 1293.414
• Family: cifX (netX multi-protocol technology)
