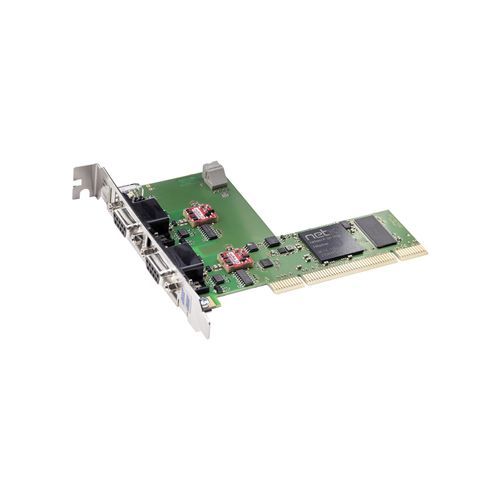

PCI communication card CIFX 50-2DP

RS422/RS485isolated2-channel

Overview
The cifX family of PC boards is the unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs independently on the board and process data is exchanged with the host via Dual-Port Memory (DPM) or DMA. All cifX boards use the same driver and toolset. netX technology enables different protocols by loading different firmware.

Key features

• Two PROFIBUS DP interfaces (Master or Slave) in a single PCI slot
• Uniform user interface for all protocols and board formats
• Easy integration thanks to a wide choice of drivers
• Data access via Dual-Port Memory (DPM) or Direct Memory Access (DMA)
• Unique slot number, assignment via rotary selector
• Extended operating temperature up to +70 °C

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical data (excerpt)
Product name: CIFX 50-2DP
Ref.: 1252.410
Short description: cifX PCI 2-channel PROFIBUS DP Master or Slave board
Function: Communication interface with PCI and 2 PROFIBUS interfaces
Communication controller: netX 100
On-board memory: 8 MB SDRAM; 4 MB serial Flash EPROM
System interface: PCI bus, 33 MHz, 32-bit data width
Data access: DPM or DMA (direct memory access)
Communication interfaces (x2): Standard PROFIBUS; isolated RS-485 interface; isolation voltage 1000 V DC (1 min test); 9-pin female D-Sub connector
Power supply: +3.3 V DC ±5%, typical current 700 mA (powered via PCI bus)
Indicators: LEDs (SYS, COM0 dual LED, COM1 dual LED)
Operating element: rotary selector for device address (board ID)
Environmental conditions: Operating temperature -20 °C … +70 °C (with 0.5 m/s airflow); storage temperature -40 °C … +85 °C; humidity 10% … 95% (non-condensing); operating altitude 0 … 2000 m
Compliance and certifications: RoHS yes; CE marking yes; UKCA marking yes; UL certification: UL 508 (UL file no. E221530)
Configuration software: SYCON.net

Hardware notes and options
Available hardware options in the cifX family: various cable lengths, M12 connectors, additional NVRAM, extended temperature ranges, 2-channel boards, separate network interfaces. Protocol can be changed by loading different netX firmware.

Features / technical specifications

• Model: CIFX 50-2DP
• Product code: 1252.410
• Type: PCI PC board 2-channel PROFIBUS DP (Master/Slave)
• Controller: netX 100
• Memory: 8 MB SDRAM, 4 MB serial Flash
• System bus: PCI 3.3 V, 33 MHz, 32 bit
• Data access: DPM or DMA
• PROFIBUS interfaces: 2 x isolated RS-485, D-Sub 9-pin, 1000 V DC isolation
• Power: +3.3 V ±5%, typical 700 mA
• Indicators: LED SYS, COM0, COM1
• Controls: Rotary selector for slot ID assignment
• Environment: -20…+70 °C operating (0.5 m/s airflow), storage -40…+85 °C, humidity 10–95% non-condensing
• Dimensions: 120 x 94.5 x 18.5 mm
• Mounting: PCI slot (3.3 V)
• EMC compliance: EN 55011 / EN BS 55011; Immunity: EN 61000-4-2/3/4/5/6/8; EN 61000-6-2 for industrial environments
• Certifications: CE, UKCA, UL 508 (File E221530)
• Support software: SYCON.net; netX development tools and drivers available
