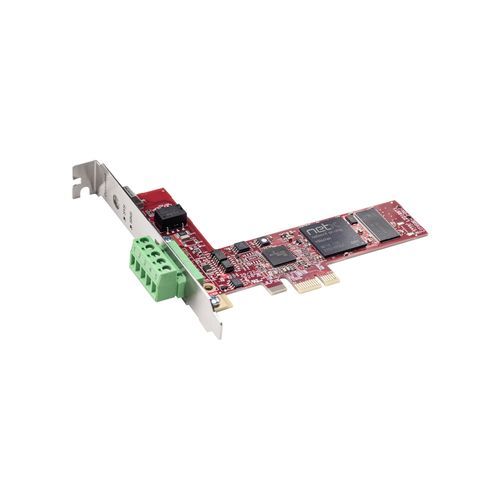

DMA PCI Express communication card CIFX 50E-DN

Product title
CIFX 50E-DN — PCI Express PC card for DeviceNet communication, usable as DeviceNet Master or Slave in PC-based automation.

Highlights

• Universal DeviceNet PC card configurable as Master or Slave
• Uniform user interface across protocols and card formats
• Wide driver and tool support for easy integration
• Data access via Dual-Port Memory (DPM) or Direct Memory Access (DMA)
• Unique slot number assignable via rotary switch

Overview
The cifX PC card family provides a unified standard for Real-Time Ethernet and Fieldbus systems in PC-based automation. The protocol stack executes autonomously on the PC card and exchanges process data with the host via DPM or DMA. Thanks to the common Hilscher Platform Strategy, all cards use the same drivers and tools regardless of protocol or card format. The netX technology enables multiple Real-Time Ethernet protocols on a single hardware platform; a protocol is changed by loading different firmware. Hardware options include various cable lengths, M12 connectors, additional NVRAM, extended temperature ranges, 2-channel cards and detached network interfaces. A wide range of device drivers and a free C-Toolkit are available for integration.

Supported protocols

• DeviceNet Master
• DeviceNet Slave

Technical specifications

• Product name: CIFX 50E-DN
• Part number: 1251.510
• Brief description: PC Card cifX PCI Express — DeviceNet Master or Slave
• Function: Communication interface with PCI Express and DeviceNet interface
• Communication controller / Type: netX 100
• Integrated memory: 8 MB SDRAM; 4 MB serial Flash EPROM
• System interface — Bus type: PCI Express, One Lane Port (x1)
• Transmission rate: 2 GBit/s
• Data access: DPM or DMA (DMA available from Hardware Revision 4)
• Data width: 32 bit
• Communication standard: DeviceNet
• Interface type: ISO-11898 according to DeviceNet specification, optically isolated
• Isolation voltage: 1000 V DC (tested for 1 minute)
• DeviceNet connector: COMBICON, male, 5-pin
• Power supply — Supply voltage: +3.3 V DC ±5 %
• Maximum current (typically): 800 mA (at 3.3 V)
• Power connector: via PCI Express Bus
• Displays: SYS (System status LED); MNS (Module Network Status — duo LED)
• Operating element: Rotary switch for slot number (card ID)
• Operating temperature range: -20 °C … +70 °C (air flow during measurement: 0.5 m/s)
• Storage temperature range: -40 °C … +85 °C
• Humidity: 10 % … 95 % relative humidity, no condensation permitted
• Environment: For UL compliant usage: device must be used in a pollution degree 2 environment
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): 120 mm x 86 mm x 18.5 mm (from hardware revision 4)
• Mounting / Installation: PCI Express x1 slot (3.3 V)
• Conformity: RoHS — Yes
• Conformance with EMC directives: CE sign — Yes; UKCA sign — Yes
• Emission standard: EN 55011 / EN BS 55011 (radio disturbance characteristics)
• Immunity standards: EN 61000-4-2 (ESD), EN 61000-4-3 (radiated RF), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted disturbances), EN 61000-4-8 (power frequency magnetic field), EN 61000-6-2 (industrial environments)
• UL certification: Device certified according to UL 508 — UL-File-Nr. E221530
• Configuration software (master and slave): SYCON.net
• Configuration software (slave): netX Configuration Tool
