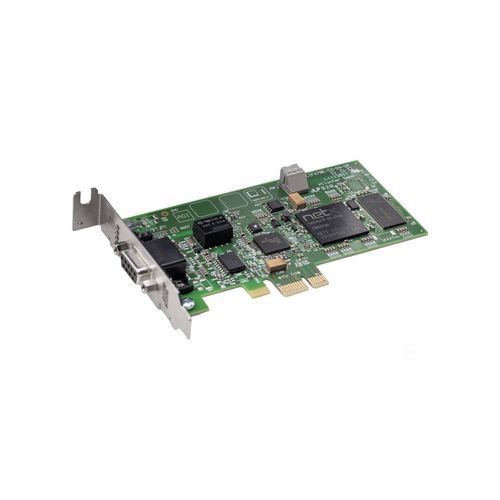

PCI Express communication card CIFX 70E-DP

Overview
The cifX PC card family provides a unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs independently on the card and process data is exchanged with the host via Dual-Port Memory (DPM) or DMA. All cifX cards use the same driver and tools regardless of protocol or card format. The netX technology enables multiple Real-Time Ethernet protocols on a single hardware platform by loading different firmware.

Main features

• Universal PROFIBUS DP PC card (Master or Slave)
• Uniform user interface across all protocols and card formats
• Easy integration via a wide range of drivers
• Data access via Dual-Port Memory (DPM) or Direct Memory Access (DMA)
• Unique slot number selectable by rotary selector
• Designed for extended operating temperature up to +65 °C (with airflow)

Hardware options and functions
Multiple hardware options available: cables of various lengths, M12 connectors, additional NVRAM, 2-channel configurations or separate network interfaces. A broad selection of device drivers and a free C-Toolkit are available for development and integration.

Supported protocol

• PROFIBUS DP Master
• PROFIBUS DP Slave

Summary table
Product name: CIFX 70E-DP
Ref.: 1259.410
Short description: cifX Low Profile PCI Express PROFIBUS DP Master or Slave or PROFIBUS MPI device
Function: Communication interface with PCI Express and PROFIBUS interface

Technical specifications

• Communication controller: netX 100
• On-board SDRAM: 8 MB
• Flash memory: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5%
• Typical current: 800 mA (at 3.3 V)
• Power/data connector: via PCI Express bus (single-lane port)
• Data access: DPM or DMA (Direct Memory Access)
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Internal transfer rate: 2 Gbit/s
• Communication standard: PROFIBUS
• PROFIBUS interface type: isolated RS-485
• PROFIBUS connector: 9-pin D-Sub female
• Isolation voltage: 1000 V DC (tested for 1 minute)
• Display/LED: SYS (system status LED), COM (communication status, dual LED)
• Operating element: rotary selector for device address (slot number)
• Operating temperature range: 0 °C … +65 °C (with 0.5 m/s airflow)
• Storage temperature range: -40 °C … +85 °C
• Humidity: relative humidity 10% … 95%, no condensation
• Environment (UL compliance): pollution degree 2
• Operating altitude: 0 m … 2000 m
• Dimensions (L x D x H): 119 mm x 69 mm x 18.5 mm
• Master/Slave configuration software: SYCON.net
• Slave configuration tool: netX configuration tool
• RoHS compliance: Yes
• UL certification: Conforms to UL 508 (UL file no. E221530)
• EMC markings and compliance: CE and UKCA
• Emissions: EN 55011 / EN BS 55011
• Immunity: EN 61000-4-2 (ESD), EN 61000-4-3 (RF), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted disturbances), EN 61000-4-8 (magnetic field), EN 61000-6-2 (industrial environments)
• Related products / notes: Master license NXLIC-MASTER available (product code 8211.000)
