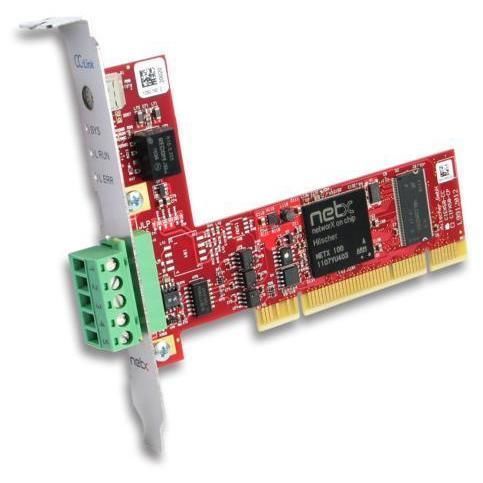

RS422/RS485 communication card CIFX 50-CC

PCIisolated

Overview
The CIFX 50-CC is a PCI PC communication card providing CC-Link Slave functionality for PC-based automation. Protocol stacks execute autonomously on the card; process data is exchanged with the host via Dual-Port-Memory (DPM) or DMA.

Key purpose
Communication interface for PC-based automation — CC-Link Slave on a PCI card, intended for integration into industrial control PCs and automation systems.

Highlights

• CC-Link Slave V2.0 and V1.1 support
• Unified driver and toolset across cifX family for consistent integration
• Wide range of device drivers and a free C-Toolkit for easy integration
• Data access via Dual-Port-Memory (DPM) or DMA
• Unique slot number: rotary switch for card ID assignment

Protocols supported

• CC-Link Slave

Additional information
All cifX PC cards use netX technology to support multiple real-time Ethernet and Fieldbus protocols on a single hardware platform; protocol changes are achieved by loading different firmware. The cifX portfolio is continuously extended to cover new standards and formats.

Caractéristiques / spécifications techniques

• Product name: CIFX 50-CC
• Part number: 1250.740
• Brief description: PC Card cifX PCI CC-Link Slave
• Function: Communication interface with PCI and CC-Link interface
• Communication controller type: netX 100
• Integrated memory: 8 MB SDRAM; 4 MB serial Flash EPROM
• System interface bus type: PCI
• PCI transmission rate: 33 MHz
• Data access: DPM or DMA (Direct Memory Access)
• Data width: 32 bit
• Communication standard: CC-Link
• Interface type: RS-485, optically isolated
• Isolation voltage: 1000 V DC (tested for 1 minute)
• Connector: COMBICON, male, 5-pin
• Supply voltage: +3.3 V DC ±5 %
• Typical maximum current: 650 mA (at 3.3 V)
• Power connector: via PCI bus
• Displays (LED): SYS (system), L RUN (L Run, duo LED), L ERR (L Error, duo LED)
• Operating element: Rotary switch for slot number (card ID)
• Operating temperature range: -20 °C … +60 °C (air flow during measurement: 0.5 m/s)
• Storage temperature range: -40 °C … +85 °C
• Humidity: 10 % … 95 % relative humidity, no condensation permitted
• Altitude: 0 m … 2000 m
• Environment (UL): Pollution degree 2 for UL-compliant usage
• Dimensions (L x W x H): 120 mm x 85.4 mm x 18.5 mm (from hardware revision 2)
• Mounting/Installation: PCI slot (3.3 V)
• Conformity: RoHS: Yes; CE: Yes; UKCA: Yes
• EMC / Emission: EN 55011 / EN BS 55011
• Immunity standards: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2
• UL certification: Device certified according to UL 508 (UL-File-Nr. E221530)
• Configuration software: SYCON.net or netX Configuration Tool
