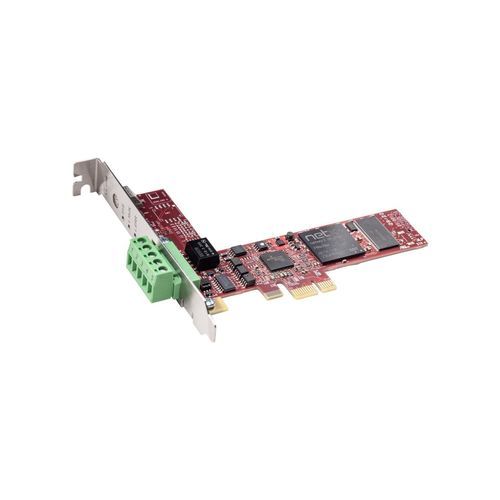

Digital PCI Express communication card CIFX 50E-CC

with I/O processor

Product overview
The Hilscher CIFX 50E-CC is a PCI Express x1 PC communication card implementing CC-Link Slave functionality. It embeds a netX 100 communication controller and executes the protocol stack autonomously on the card. Process data is exchanged with the host via Dual-Port Memory (DPM) or Direct Memory Access (DMA). Hilscher's netX technology enables different real-time Ethernet protocols on a single hardware platform by loading specific firmware, while drivers and tools remain uniform across protocols and card formats.

Highlights

• CC-Link Slave support (V2.0 and V1.1)
• Uniform user interface and drivers across protocols
• Easy integration with a wide range of drivers
• Data access via DPM or DMA
• Unique slot number settable by rotary switch

Supported protocols

• CC-Link Slave (V2.0, V1.1)

Technical data (selected)

• Product name: CIFX 50E-CC
• Part number: 1251.740
• Brief description: PC Card cifX PCI Express CC-Link Slave
• Function: Communication interface with PCI Express and CC-Link interface
• Communication controller: netX 100
• Integrated memory: 8 MB SDRAM; 4 MB serial Flash EPROM
• System interface (bus): PCI Express x1 (One Lane)
• Transmission rate: 2 GBit/s
• Data access: DPM or DMA (from Hardware Revision 3)
• Data width: 32 bit
• Communication standard: CC-Link
• Network interface: RS-485, optically isolated; COMBICON 5-pin connector
• Isolation voltage: 1000 V DC (tested 1 minute)
• Supply voltage: +3.3 V DC ±5 %; typical current ≈ 800 mA
• Power connection: via PCI Express bus
• Indicators: SYS, L RUN (duo LED), L ERR (duo LED)
• Operating element: Rotary switch for slot number (card ID)
• Operating temperature: 0 °C to +60 °C (measurement with 0.5 m/s airflow)
• Storage temperature: -40 °C to +85 °C
• Humidity: 10 % to 95 % RH, no condensation
• Altitude: 0 m to 2000 m
• Dimensions (L x W x H): 120 x 89.9 x 18.5 mm (from HW rev. 3)
• Mounting: PCI Express x1 slot (3.3 V)
• Conformity: RoHS, CE, UKCA
• EMC emission: EN 55011 / EN BS 55011
• Immunity standards: EN 61000-4-2/3/4/5/6/8; EN 61000-6-2 (industrial)
• UL: Certified according to UL 508 (UL-File-Nr. E221530)

Configuration & ordering

• Configuration software: SYCON.net or netX Configuration Tool
• Assign slot number via rotary switch on the card
• Part number for ordering: 1251.740
