PC/104 communication interface card CIFX M223090AE-REF

M.2EtherNet/IPModbus TCP

Product Overview
The cifX PC card family provides a unified hardware and software platform for PC-based automation communication. The protocol stack runs autonomously on the card (netX technology) and exchanges process data with the host via Dual-Port-Memory or DMA. All cifX cards share common Hilscher drivers and tools, enabling protocol changes by loading different firmware and simplifying integration across Real-Time Ethernet and Fieldbus systems.

Highlights

• Smallest multiprotocol PC cards on the automation market
• Single hardware solution for all Real-Time Ethernet protocols (firmware-changeable)
• Common user interface and driver family for simplified integration
• Detached network interface (15 cm or 20 cm) for flexible installation
• Optional hardware: M-12 connectors, additional NVRAM, 2-channel variants
• Extended operating temperature up to 70 °C

Supported protocols

• PROFINET IO-Device
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information
Product name | Part number | Brief description

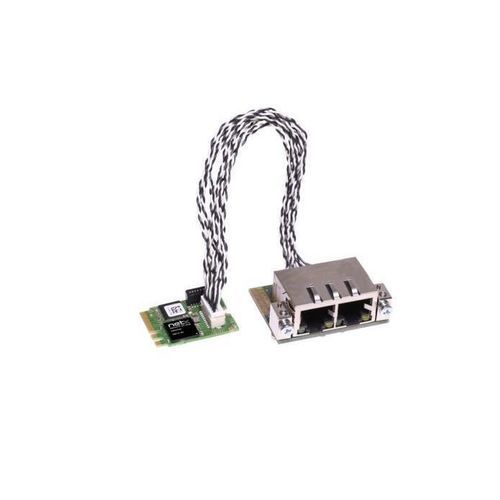

cifX M223090AE-RE\F | 1443.101 | PC card M.2 2230 Key A+E - Real-Time Ethernet

Technical specifications

• Form factor: M.2 2230 Key A+E
• Part number: 1443.101
• Protocol execution: autonomous on card (netX technology)
• Host interface: Dual-Port-Memory or DMA (Direct Memory Access)
• Detached network interface available (15 cm or 20 cm)
• Optional hardware features: M-12 connectors, additional NVRAM, 2-channel cards
• Operating temperature: extended range up to 70 °C
• Software: common Hilscher driver family and free C-Toolkit available
• Multiprotocol capability: protocol selectable via firmware change
