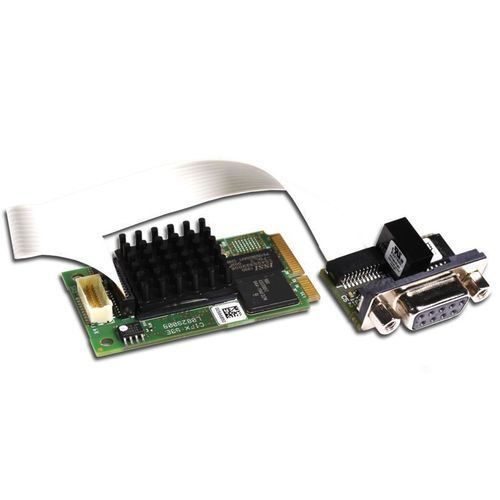

PCI Express communication card with I/O processor CIFX 90E-DPF

Overview
The cifX PC card family is the unified standard supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack is executed autonomously on the PC card and process data is exchanged with the host via Dual-Port Memory (DPM) or DMA. All PC cards use the same driver and tools due to the common Hilscher Platform Strategy. netX technology enables multiple Real-Time Ethernet protocols on the same hardware; protocols can be changed by loading different firmware. Multiple hardware options are available (different cable lengths, M12 connectors, additional NVRAM, extended temperature range, 2-channel cards, detached network interfaces). A wide range of device drivers and a free C-Toolkit are available.

Highlights

• Universal PROFIBUS DP PC card (Master or Slave)
• Uniform user interface for all protocols and card formats
• Easy integration due to a large variety of drivers
• Data access via Dual-Port Memory (DPM) or direct memory access (DMA)
• Includes a detached network interface (15 cm or 30 cm)

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical Data (table)
Product name: CIFX 90E-DP\F
Part number: 1291.410
Brief description: PC Card cifX Mini PCI Express PROFIBUS DP Master or Slave or PROFIBUS MPI Device - with cable connector fieldbus for PROFIBUS assembly interface (AIFX-DP)
Function: Communication Interface with Mini PCI Express and PROFIBUS interface
Communication controller type: netX 100
RAM: 8 MB SDRAM
FLASH: 4 MB serial Flash EPROM
Supply voltage: +3.3 V DC ±5 %
Maximum current (typical): 600 mA (at 3.3 V)
Connector: via Mini PCI Express Bus
Bus type: Mini PCI Express, One Lane Port
Data access: DPM or DMA (Direct Memory Access), from hardware revision A
Dual-port memory size: 64 KB
Data width: 32 bit
Transmission rate: 33 MHz
Communication standard: PROFIBUS
Interface type: RS-485, isolated
Connector (fieldbus): Cable Connector Fieldbus X3 (JST 10FMN-BMT-A-TF(LF)(SN), pitch 1.0 mm) to connect a PROFIBUS Assembly Interface AIFX-DP
Displays: LED display SYS (System status LED)
Operating temperature range: 0 °C ... +55 °C (air flow during measurement: 0.5 m/s)
Storage temperature range: -40 °C ... +85 °C
Humidity: 10 % … 95 % relative humidity, no condensation permitted
Environment (UL): For UL compliant usage: device must be used in a pollution degree 2 environment
Altitude: 0 m … 2000 m
Dimensions (L x W x H): 51 mm x 30.2 +/- 0.1 mm x 11 mm
Mounting/Installation: PCI Express Mini System Connector (3.3 V), X1/X2 = One-Lane
Configuration software (master/slave): SYCON.net
Configuration software (slave): netX Configuration Tool
Conformity: RoHS = Yes
UL certification: UL 508 (UL-File-Nr. E221530)
EMC / CE / UKCA: CE = Yes, UKCA = Yes; Emission: EN 55011 / EN BS 55011; Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8; Generic standard: EN 61000-6-2 (industrial environments)

Technical specifications

• Model: CIFX 90E-DP\F (Mini PCI Express)
• Part number: 1291.410
• Fieldbus: PROFIBUS DP (Master or Slave)
• Communication controller: netX 100
• Memory: 8 MB SDRAM, 4 MB serial Flash
• Host interface: Mini PCI Express, one-lane, 33 MHz, 32-bit data width
• Data exchange: Dual-Port Memory (64 KB) or DMA
• Electrical supply: 3.3 V DC ±5 %, typ. 600 mA
• Physical size: 51 x 30.2 x 11 mm (Mini PCIe)
• Operating temperature: 0 °C to +55 °C (standard); storage -40 °C to +85 °C
• Isolated RS-485 PROFIBUS interface (connector via AIFX-DP)
• Configuration tools: SYCON.net and netX Configuration Tool
• UL and EMC approvals: UL 508 (E221530), CE/UKCA compliant
