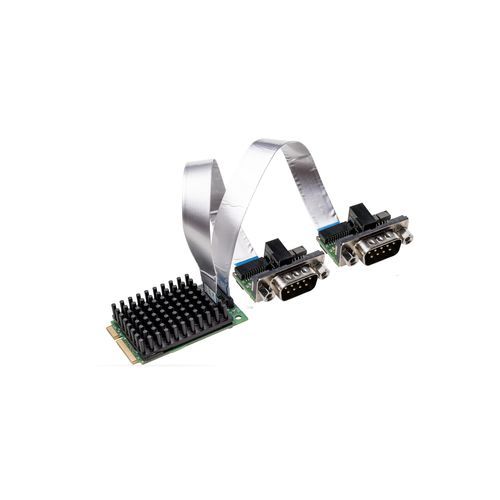

DMA PCI Express communication card CIFX 90E-2COETF

dual-output

Description
The cifX PC card family provides a unified standard supporting Real-Time Ethernet and fieldbus systems for PC-based automation. Protocol stacks run independently on the card and exchange process data with the host via Dual-Port Memory or DMA. The common cifX platform strategy ensures the same driver and tooling across protocols and card formats. netX-based technology enables implementation of Real-Time Ethernet protocols on a single hardware platform and allows protocol changes via firmware update.

Key features

• Two CANopen interfaces (configurable as Master or Slave) in a single Mini PCI Express slot
• Uniform user interface for all protocols and card formats
• Easy integration with a wide range of drivers
• Data access via Dual-Port Memory or Direct Memory Access (DMA)
• Includes separate network cable options (15 cm or 30 cm)
• Extended operating temperature versions up to +70 °C

Product details
Type: Mini PCI Express 2-channel PC card - CANopen/CANopen
Family: cifX (cifX PC cards)
CANopen mode: Master or Slave
Host access: Dual-Port Memory or DMA (Direct Memory Access)
Network interface: separate cable available (15 cm or 30 cm)
Operating temperature: extended versions up to +70 °C
Driver: unified cifX driver for all protocols and card formats
Hardware options: additional NVRAM, various cables and M-12 connectors, 2-channel versions with or without heatsink depending on model

Supported protocols

• CANopen Master
• CANopen Slave

Versions and product codes
Name | Product code | Short description
CIFX 90E-2CO\ET\F | 1293.504 | Mini PCI Express 2-channel PC card - CANopen/CANopen
NXLIC-MASTER 2 LIZENZEN | 8212.000 | Two Master licenses
CIFX 90E-2CO\ET\F/30 | 1293.504/30 | Mini PCI Express 2-channel card with extended temperature range, includes 30 cm cable

Technical specifications

• Form factor: Mini PCI Express (half-size)
• Channels: 2 CANopen channels (configurable Master or Slave)
• Memory / host access: Dual-Port Memory and DMA support
• Driver compatibility: unified cifX driver for all protocols and formats
• Firmware: netX-based, allows protocol change via firmware
• Hardware options: separate cables (15 cm / 30 cm), optional NVRAM, extended temperature version
• Physical interfaces: optional M-12 connectors
• Operating range: up to +70 °C (for extended versions)
• Typical application: PC-based automation communication, multi-protocol integration
