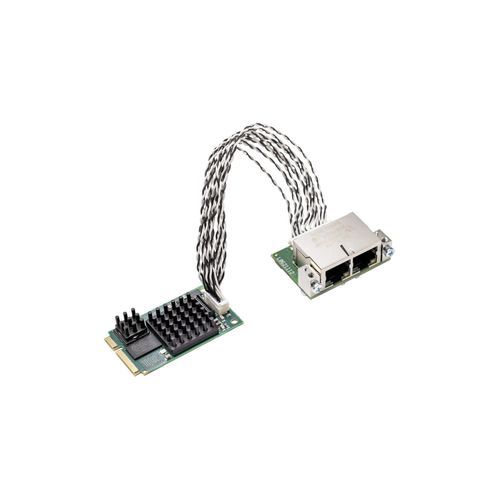

DMA PCI Express communication card CIFX 90E-REETF series

with I/O processordual-output

Title
cifX Mini PCI Express PC card for extended temperature range - Real-Time Ethernet

Highlights

• Universal Real-Time Ethernet PC card (Master or Slave)
• Uniform user interface across protocols and card formats
• Easy integration with multiple driver options
• Data access via Dual-Port-Memory (DPM) or DMA
• Optional separate network interface (15 cm or 20 cm cable), optional M12 connector
• Rated for extended operating temperature up to 70 °C

Description
The cifX PC card family provides a unified solution supporting Real-Time Ethernet and Fieldbus systems for PC-based automation. The protocol stack runs autonomously on the card and exchanges process data with the host via Dual-Port-Memory or DMA. Hilscher's netX technology implements Real-Time Ethernet protocols on a single hardware platform; communication protocols can be changed by loading different firmware. The common Hilscher platform strategy ensures that all cifX cards use the same driver and tools regardless of protocol or card format.
Multiple hardware options: cables of different lengths, M12 connectors, additional NVRAM, extended temperature range, dual-channel cards or separate network interfaces. A broad range of device drivers and a free C-Toolkit are available.
The cifX portfolio is continuously updated with new standards, protocols and formats to meet the requirements of PC-based automation.

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• EtherNet/IP Adapter
• EtherCAT Slave

Characteristics / technical specifications

• Product name: CIFX 90E-RE\\ET\\F
• Ref.: 1291.104
• Short description: cifX Mini PCI Express PC card for Real-Time Ethernet Master or Slave - with Ethernet cable connector for AIFX-RE assembly interface
• Function: Communication interface with Mini PCI Express and Ethernet interface
• Communication controller: netX 100
• RAM: 8 MB SDRAM
• FLASH memory: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V DC ±5%
• Typical maximum current: 800 mA (at 3.3 V)
• Power connector: via Mini PCI Express bus
• Bus type: Mini PCI Express, single-lane port
• Data access: DPM or DMA
• Dual-port memory size: 64 KB
• Data width: 32 bit
• Bus speed: 33 MHz
• Communication interface: Ethernet 10BASE-T/100BASE-TX, isolated
• Ethernet connector: Ethernet cable connector X4 (JST BM20B-SRDS-G-TFC, pitch 1.0 mm) to connect AIFX-RE assembly interface
• Indicator: SYS status LED
• Operating temperature range: 0 °C … +70 °C (airflow during measurement: 0.5 m/s)
• Storage temperature range: -40 °C … +85 °C
• Humidity: 10% … 95% relative humidity, no condensation
• Operating altitude: 0 m … 2000 m
• Dimensions (L x W x H): 51 mm x 30.2 ±0.1 mm x 12.5 mm
• Mounting/installation: Mini PCI Express system connector (3.3 V), X1/X2 = single-lane
• Configuration software (master and slave): SYCON.net
• Slave configuration tool: netX configuration tool
• Compliance: RoHS: Yes
• Markings and EMC: CE mark: Yes; UKCA mark: Yes; Emissions: EN 55011 / EN BS 55011; Immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8; Industrial environment: EN 61000-6-2
