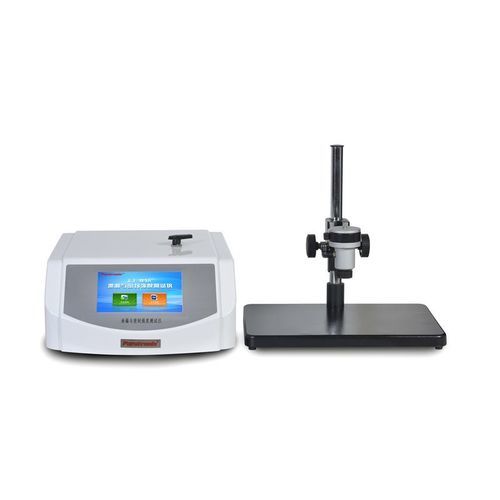

Pressure leak tester LT-03A

high-pressurepneumaticfor packaging

Introduction
The LT-03A Leak and seal strength tester is designed for quantitative evaluation of seal strength, seal quality, burst pressure, seal integrity, compression resistance, torsion force and joint/disengaging force of flexible packages, aseptic/medical packaging, plastic tamper-evident caps, flexible tubes, caps and related materials. It is suitable for quality control and R&D in medical device and sterile packaging production.

Features

• Positive pressure test method
• Multiple test modes: burst, creep, creep-to-failure and pressure retaining
• Interchangeable fixtures for flexible bags, flexible tubes, blister packs, aerosol valves, caps and other sample types
• Built-in printer for immediate result output
• Customizable test range up to 1.8 MPa; standard range 0–600 KPa (0–87 psi)

Configuration

• Standard configuration: Main instrument, Test frame
• Optional accessories: restraint test plate; open package test fixture; plastic pilfer-proof cap sealing test fixture; flexible tube sealing test fixture; aerosol valve sealing test fixture; blister package sealing test fixture

Notes
Air supply connection port size: φ6 mm. Compressed air supply must be provided by the user.

Technical parameters
Test Range: 0–600 KPa (0–87 psi) standard, customizable up to 1.8 MPa
Gas Injection Head: Φ6 mm (standard); Φ4 mm, Φ1.6 mm, Φ10 mm optional
Gas Supply Pressure: 0.4–0.9 MPa (user provided)
Gas Connection Port: Φ6 mm PU tube
Instrument Dimension: 450 (L) × 385 (W) × 235 (H) mm
Test Frame Size: 380 (L) × 260 (W) × 365 (H) mm
Weight: 20 Kg

Standards

• ISO 11607-1
• ISO 11607-2
• ASTM F1140
• ASTM F2054
• ASTM F2095
• ASTM F2096

Technical characteristics / specifications

• Model: LT-03A
• Test modes: burst, creep, creep-to-failure, pressure retaining
• Pressure method: positive pressure
• Customizable test range up to 1.8 MPa; standard 0–600 KPa (0–87 psi)
• Gas injection head options: Φ6 mm (standard), Φ4 mm, Φ1.6 mm, Φ10 mm
• Required gas supply pressure: 0.4–0.9 MPa (user supplied)
• Gas connection: Φ6 mm PU tube
• Instrument dimensions: 450 × 385 × 235 mm
• Test frame size: 380 × 260 × 365 mm
• Weight: 20 Kg
• Built-in printer for test results
• Available fixtures for flexible bags, tubes, blister packs, caps, aerosol valves and more
