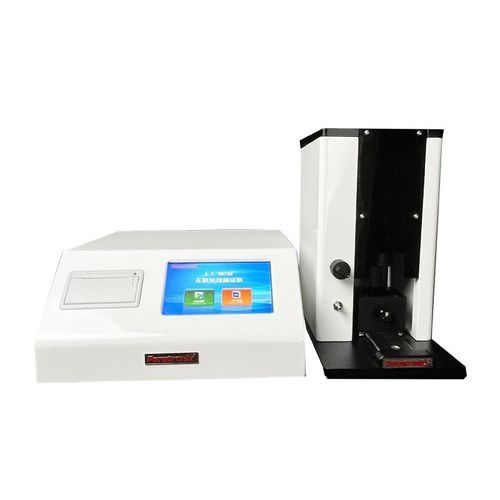

Vacuum leak tester LT-02M

pressure risevacuum decayvacuum chamber

Product Overview
LT-02M vacuum decay leak tester uses a high-precision pressure sensor to monitor the pressure environment and its variation. Leakage of a sample is determined by the pressure drop during the equilibrium period; used with appropriate fixtures, the instrument evaluates package integrity for a wide range of medical and consumer packages.

Product Features

• 7-inch TFT touch screen with an intuitive user interface for straightforward operation
• Single-sample test time under 25 seconds
• Non-destructive leak testing with minimum detectable leak limit of 5 μm
• Independent, easily replaceable test fixture design
• Applicable to flexible and rigid packaging: vials, infusion bags, contact lens packs, milk powder cans, electronic accessory packages, etc.
• Zero-point and standard leak calibration methods for fast and accurate calibration
• ABS engineering plastic enclosure resistant to impacts and corrosion
• Modular design to simplify upgrades and maintenance
• Automatic pass/fail judgment; result data printable with optional micro printer

Test Standards
Compliant with ASTM F2338-13

Test Principle
The instrument detects package leaks by measuring the rise in pressure (vacuum loss) inside an enclosed evacuated test chamber that contains the test package; leakage is judged from the measured pressure change over the test interval.

Technical Specifications
Item: Test Method — Specification: Vacuum decay method
Item: Test System — Specification: Single sensor
Item: Vacuum Degree — Specification: 0 ~ -90 kPa
Item: Pressure Accuracy — Specification: 0.25% FS
Item: Vacuum Resolution — Specification: 1 Pa
Item: Operation Interface — Specification: Touch screen (7-inch TFT)
Item: Leak Detect Limit — Specification: 5-10 μm (minimum 5 μm)
Item: Test Time — Specification: 60 s/group (single sample < 25 s)
Item: Test Results — Specification: Qualified / Unqualified

Characteristics / Technical specifications

• Test Method: Vacuum decay method
• Test System: Single sensor
• Vacuum Degree: 0 ~ -90 kPa
• Pressure Accuracy: 0.25% FS
• Vacuum Resolution: 1 Pa
• Operation Interface: Touch screen (7-inch TFT)
• Leak Detect Limit: 5-10 μm (minimum detect 5 μm)
• Test Time: 60 s/group (single sample test < 25 s)
• Test Results: Qualified / Unqualified
• Calibration: Zero point and standard leak calibration available
• Construction: ABS engineering plastic shell, modular design
