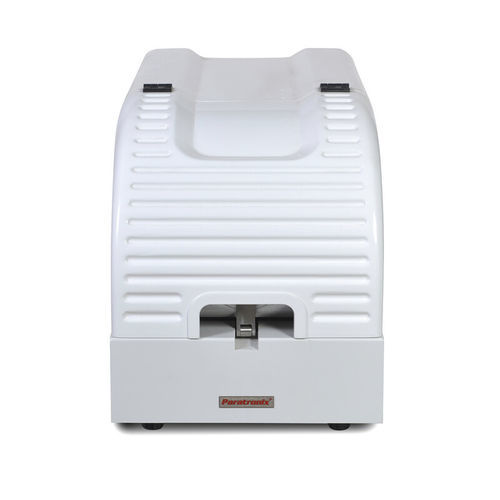

Permeameter OTR-D3

Product overview
OTR-D3 Oxygen Transmission Rate Tester is based on the coulometric sensor method and is designed to measure oxygen permeability of medium- and high-barrier materials such as plastic films, composite films, sheets and papers used in food, pharmaceutical, medical device, consumer and electronics packaging applications.

Features

• Coulometric sensor method with high precision infrared sensor to ensure measurement accuracy.
• Automatic humidity and temperature control to maintain a stable test environment.
• PC-controlled operation with dedicated testing software and user-friendly interface.
• Real-time display of test data and permeation curves.
• Three independent test chambers allowing simultaneous testing of 3 samples.
• One-button automatic test start for simplified workflow.
• Patented pipeline flushing design for carrier gas cleanliness and high testing efficiency.
• Leak-proof sample sealing technology to improve chamber sealing performance.
• Optional computerized data traceability and rights management for pharmaceutical industry compliance.

Technical specification
Item: Parameter
Model: OTR-D3
Measuring range (film): 0.01～6500 (cc/㎡·24h)
Resolution: 0.001
Permeation area: 50 cm2 (customization available)
Sample thickness: <3 mm (accessories required for thicker samples)
Sample quantity: 3
Test mode: Independent sensor per chamber
Temperature control range: 15℃～55℃ (optional)
Temperature control accuracy: ±0.1℃
Carrier gas: 99.999% high-purity nitrogen (user supplied)
Carrier gas flow: 0～100 mL/min
Air source pressure: ≥0.2 MPa
Port size: 1/8 inch metal tube
Instrument dimensions: 740 mm (L) × 415 mm (W) × 430 mm (H)
Power supply: AC 220V 50Hz
Net weight: 50 kg

Testing principle
The pre-conditioned specimen is clamped in the test cell. Oxygen (or air) flows on one side of the specimen while high-purity nitrogen flows on the other side. Oxygen molecules permeating through the specimen are carried to the coulometric sensor, which analyses oxygen concentration and calculates oxygen transmission rate and related parameters.

Test standards

• ASTM D3985
• ASTM F2622
• ASTM F1307
• ASTM F1927
• ISO 15105-2
• JIS K7126-B

Configuration

• Standard configuration: main instrument, sampler, nitrogen/oxygen cylinder pressure reducing valve, Dow Corning vacuum grease.
• Optional: package test accessories, package temperature control device, constant temperature control device.
• Note: gas supplies (nitrogen and oxygen) must be provided by the user.

Characteristics / technical specifications

• Model: OTR-D3
• Measuring range (film): 0.01～6500 cc/㎡·24h
• Resolution: 0.001
• Permeation area: 50 cm² (customizable)
• Sample thickness: <3 mm (accessories for greater thickness)
• Number of samples per test: 3
• Test mode: independent sensor per chamber
• Temperature control range: 15℃～55℃ (optional)
• Temperature control accuracy: ±0.1℃
• Carrier gas: high-purity nitrogen (user supplied)
• Carrier gas flow: 0–100 mL/min
• Required pressure: ≥0.2 MPa
• Port size: 1/8" metal tube
• Dimensions: 740 × 415 × 430 mm (L×W×H)
• Power supply: AC 220V 50Hz
• Net weight: 50 kg
