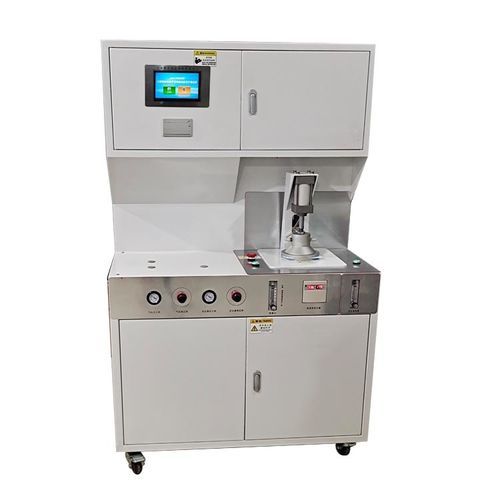

Filtration test machine MU-K1030

automaticfor masksfor laboratory

Product introduction The MU-K1030 is a laboratory tester designed to measure particulate filtration efficiency of daily protective masks and respirators. It is intended for use by medical device inspection centers, occupational safety laboratories, hospital testing units and mask manufacturers for standardized particulate efficiency assessment.

Equipment use The system generates a controlled aerosol (salt and oil), conditions particle charge, and measures upstream and downstream concentrations using a high-precision PM2.5 sensor and laser particle counter to calculate filtration efficiency. The pneumatic sample clamp and automatic sequence enable reproducible test runs compliant with referenced standards.

Technical parameters

• Aerosol generation: two cold-type aerosol generators (salt and oil) with convenient solution feed.
• Particle measurement: high-precision PM2.5 sensor and laser dust particle counter.
• Electrostatic charge neutralizer for aerosol particles.
• Full particle leak-proof enclosure for operator safety.
• Detection range of filtration efficiency: 0–99.999%.
• Flowmeter range for efficiency tests: 10–100 L/min, accuracy 2.5.
• Sampling frequency: 1–9999 times/min (user-configurable).
• Typical particulate concentration for testing: 20–30 mg/m3; dynamic detection range 0.001–100 mg/m3, accuracy 1%.
• Particle median diameters: salt 0.075 ±0.02 μm; oil 0.185 ±0.02 μm. Geometric standard deviation: salt ≤1.86; oil ≤1.60.
• Instrument accuracy class: 2.
• Power supply: AC 220V 50Hz. Required air source: compressor 85 L/min or external compressed air.

Applicable standards

• GB/T 32610-2016 Technical Specification for Daily Protective Masks ( clauses 6.13 Appendix A, 6.14 Appendix B )
• GB 2626-2006 Respiratory protective equipment — Filtering half mask against particulate matter
• GB 19082-2009 Technical requirements for medical disposable protective clothing
• YY 0469-2011 Surgical masks for medical use

Configuration

• 7" TFT touch screen.
• SW-20 control system (proprietary).
• Taiwan AirTAC pneumatic components.
• Japan Kanomax particle counter.
• Pneumatic clamp sample fixture with protection device.
• Fully automatic test sequence.

Characteristics / Technical specifications

• Model: MU-K1030.
• Filtration efficiency detection range: 0–99.999%.
• Flowmeter detection range: 10–100 L/min, accuracy 2.5.
• Sampling frequency: 1–9999 times/min (configurable).
• Particulate concentration for testing: typically 20–30 mg/m3; dynamic range 0.001–100 mg/m3, accuracy 1%.
• Particle median diameters: salt 0.075 ±0.02 μm; oil 0.185 ±0.02 μm.
• Components include: salt & oil aerosol generators, electrostatic neutralizer, PM2.5 sensor, glass-rotor flowmeter, vacuum pump, laser particle counter.
• Power supply: AC 220V 50Hz. Required air source: compressor 85 L/min or compressed air.
