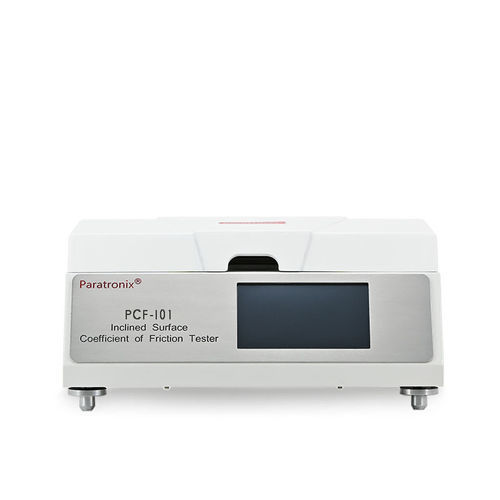

Friction testing tribometer PCF-I01

Product Introduction
The PCF-I01 Inclined Surface Coefficient of Friction Tester measures the static coefficient of friction of materials such as paper, paperboard, plastic films, sheets and conveyor belts. By evaluating material slip properties, it supports quality control and process adjustment for parameters such as package opening behavior and packaging-machine speed to ensure conformity with application requirements.

Product Features

• Constant angular velocity with automatic platform reset to meet test requirements under varied conditions.
• Specifically designed to determine the static coefficient of friction on an inclined surface.
• Test platform and slider undergo demagnetization and residual magnetism checks to reduce measurement errors.
• Microcomputer control with a 7-inch touchscreen for straightforward operation and data display.
• Equipped with an integrated micro-printer for immediate result output.

Test Standards
Conforms to: ASTM D202; ASTM D4918; TAPPI T815

Technical Specifications
Item — Parameter
Angle Range — 0°–85°
Accuracy — 0.01°
Angular Velocity — 0.1°/s – 10.0°/s
Slider Specifications — 1300 g (standard); 235 g (optional); 200 g (optional)
Environmental Requirements — Temperature: 23 ± 2°C; Humidity: 20%RH – 70%RH
Appearance Dimensions — 400 mm (L) × 305 mm (W) × 200 mm (H)
Power Supply — AC 220 V, 50 Hz
Net Weight — 20 kg
Overall Dimensions — 650 mm (L) × 290 mm (W) × 360 mm (H)
Equipment Weight — Approx. 15 kg
Power Voltage — 220 V, 50 Hz

Features / Technical Specifications

• Model: PCF-I01
• Angle range: 0°–85°
• Measurement accuracy: 0.01°
• Angular velocity range: 0.1°/s – 10.0°/s
• Standard slider weight: 1300 g (optional 235 g, 200 g)
• Environmental conditions: 23 ± 2°C; 20%RH – 70%RH
• Appearance dimensions: 400 × 305 × 200 mm (L × W × H)
• Overall dimensions: 650 × 290 × 360 mm (L × W × H)
• Net weight: 20 kg; Equipment weight approx. 15 kg
• Power: AC 220 V, 50 Hz
• Control and interface: Microcomputer control with 7-inch touchscreen
• Output: Built-in micro-printer
• Quality control: Platform and slider demagnetization and residual magnetism inspection to reduce testing errors
