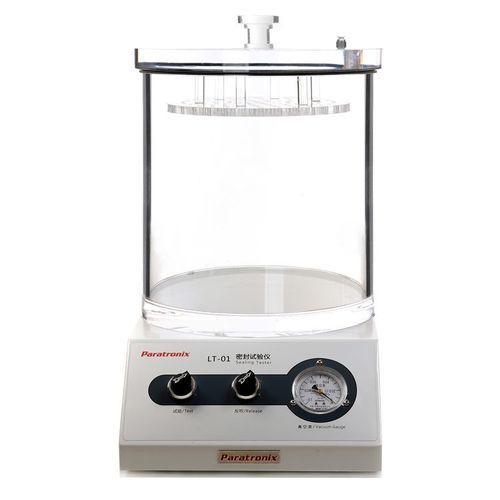

Vacuum leak tester LT-01

pneumaticvacuum decayvacuum chamber

Product introduction
LT-01 is a compact leak tester designed for evaluating seal integrity of soft packaging in food, pharmaceutical, cosmetics, electronics and related industries. It enables comparative assessment of sealing processes and performance, and can be used for post-drop and compression sealing checks to validate packaging robustness.

Product features

• No external power required
• Stable and repeatable testing system
• Ultra-thick plexiglass vacuum chamber
• Custom vacuum chamber sizes available
• No vacuum pump required (operates with external compressed air)
• User-friendly operation and simple maintenance
• Vacuum level: Class 1

Technical parameters

• Vacuum degree: 0~-90 kPa
• Vacuum chamber size: Φ270 mm x 210 mm (H) (other sizes customizable)
• Machine dimensions: 300 mm (L) x 380 mm (W) x 500 mm (H)
• Air source: external air compressor (to be supplied by customer)
• Air pressure: 0.7 MPa recommended
• Weight: 15 kg

Standards

• YBB00052005
• GB/T 15171
• GB/T27728-2011
• ASTM D3078
• YBB00122002

Applications / Technical specifications

• Model: LT-01
• Applications: seal integrity testing for soft/ flexible packaging in food, pharmaceutical, daily chemical, electronics and similar industries
• Operation: pneumatic operation without internal vacuum pump or electrical supply
• Chamber: plexiglass, standard Φ270 mm x 210 mm (H); non-standard sizes on request
• Vacuum range: 0 to -90 kPa (Class 1)
• Dimensions: 300 mm (L) x 380 mm (W) x 500 mm (H)
• Air requirement: external compressor, 0.7 MPa
• Net weight: 15 kg
