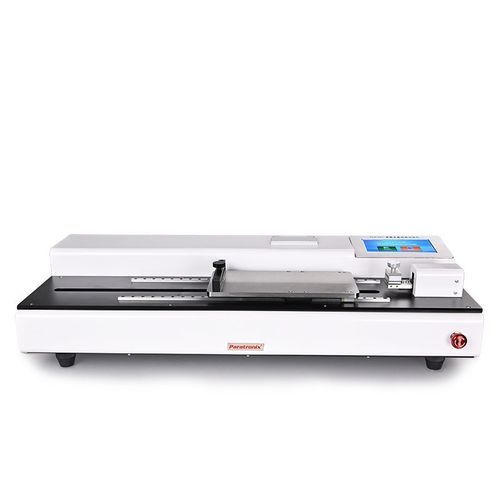

Friction testing tribometer FCF-T01

Product Introduction
The FCF-T01 Friction Peel Tester performs static and dynamic coefficient of friction tests and peel strength tests on plastic films, sheets, foils, paper, cardboard, woven bags, fabrics, metal-plastic composite tapes for communication cables, conveyor belts and textiles, as well as adhesive laminates, medical adhesive dressings, release paper and protective films.

Product Features

• Designed for coefficient of friction and peel strength testing
• Sliding plane and sled are degaussed and remanence-checked to reduce systematic error
• Microcomputer control with 7" touch TFT LCD for operation and data viewing
• Precision differential motor drive for smooth transmission, low noise, accurate positioning and repeatable results
• Integrated micro printer and RS232 interface for external connection and data transfer

Test Standards

• ISO 8295
• ISO 8510-2
• ASTM D1894
• ASTM D4917
• ASTM D3330
• TAPPI T816
• TAPPI T549

Technical Specifications
Item: Parameter
Measuring Range: 0.6kg (Customization available)
Force Resolution: 0.01 N
Displacement Resolution: 0.01 mm
Sample Thickness: ≤5mm (other thickness can be customized)
Sliding Plate Size: 63×63mm
Test Mode: Stripping Test, Coefficient of friction test
Display Screen: 7" (65 million color TFT LCD touch screen)
Sled Mass: 200g, 500g (optional)
Bench Size: 120×400mm
Digital Display: The dynamic and static coefficient of friction are displayed
Measurement Accuracy: Better than 0.5
Sliding Speed: 100, 150mm/min, 1-500mm/min stepless speed (customization available)
Sliding Stroke: 500mm (adjustable)
Instrument Dimension: 900 (L)X400(W)X200mm (H)
Power Supply: AC220V±22V, 50Hz
Net Weight: 25kg
Environmental Requirement: Temperature: 23±2℃, humidity: 50±5%RH
Standard Configuration: Main instrument, micro printer, 200g sled, 180° stripping test fixture
Optional: 90° stripping test fixture, thick sample fixture, 500g non-standard sled

Characteristics / Technical specifications

• Model: FCF-T01
• Measuring Range: 0.6kg (customizable)
• Force Resolution: 0.01 N
• Displacement Resolution: 0.01 mm
• Max Sample Thickness: ≤5 mm (customizable)
• Sliding Plate Size: 63×63 mm
• Test Modes: Peel and friction coefficient (static and dynamic)
• Display: 7" TFT LCD touch screen (65M colors)
• Sled Mass Options: 200 g (standard), 500 g (optional)
• Sliding Speed: 1–500 mm/min (stepless)
• Sliding Stroke: 500 mm (adjustable)
• Dimensions: 900×400×200 mm (L×W×H)
• Power: AC220V±22V, 50Hz
• Net Weight: 25 kg
• Data Output: Micro printer and RS232 port
• Accessories: 180° fixture (standard); 90° fixture, thick sample fixture, 500g sled (optional)
