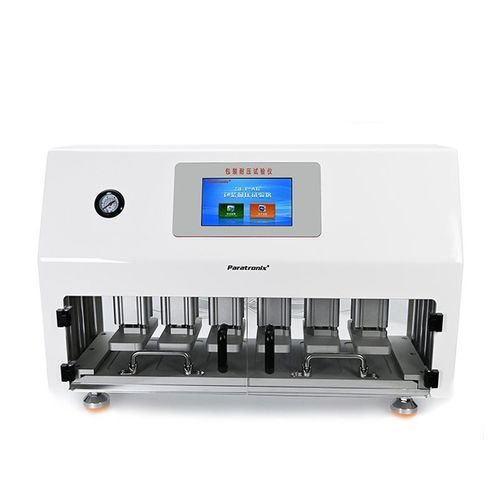

Compression resistance testing machine SCT-A6

qualityleakcomputer-controlled

Product Introduction
SCT-A6 Package Compressive Resistance Tester is designed to evaluate the compressive resistance and leak integrity of small flexible packages (sauce packets, seasoning packets, ketchup packets, salad/vegetable packets, jam or cream packets) and small pharmaceutical sachets. The unit applies controlled pressure for a preset duration and enables observation of leakage to assess package performance.

Product Features

• Compact, stable design suitable for laboratory or production-line quality control
• Six test stations allow simultaneous testing of up to 6 samples to increase throughput
• Micro-computer control with 7-inch touchscreen for intuitive operation and data viewing
• Adjustable pressure and time settings; customization available to meet various package testing requirements

Test Principle
The sample is pressed by a platen at a specified pressure and held for a defined time. Following the pressure hold, the package is inspected for leaks; the presence or absence of leakage under the applied load indicates the compressive resistance of the package.

Technical Specifications
Item - Parameter
Test Pressure - 0.1MPa ~ 0.7MPa
Control System - Micro-computer
Test Time - 1.0s ~ 999999.9s
Test Station - 6
Gas Source - 0.7MPa ~ 0.8MPa (prepared by the user)
Port Size - φ8mm PU Tubing
Instrument Dimension - 660mm (L) X 200 mm (W) X 372 mm (H)

Characteristics / Technical Specifications

• Test Pressure: 0.1MPa ~ 0.7MPa
• Control System: Micro-computer with 7" touchscreen
• Test Time: 1.0s ~ 999999.9s
• Test Stations: 6 simultaneous samples
• Gas Source Requirement: 0.7MPa ~ 0.8MPa (user-supplied)
• Port Size: φ8mm PU tubing
• Dimensions: 660 mm (L) x 200 mm (W) x 372 mm (H)
