Calibration testing machine PMT-C

forcequalityspeed

Product Introduction

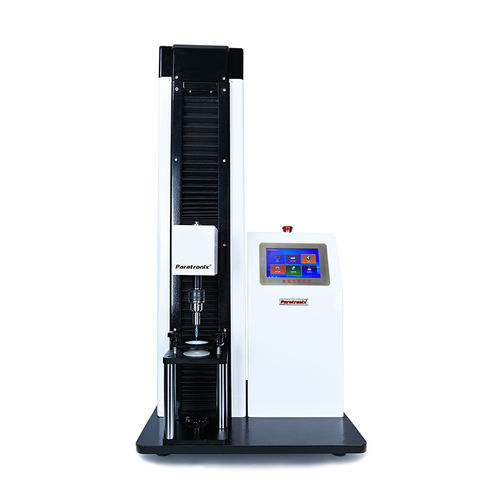

The PMT-C Puncture Force Tester is a professional instrument in the pharmaceutical packaging testing series, designed to measure the puncture force of rubber stoppers. It is also suitable for puncture testing of plastic films, laminated films, artificial skin, combination caps and oral liquid caps. Parameter settings comply with relevant national and pharmaceutical standards. The tester features an imported high-precision force sensor for accurate, stable results, and stepless speed control to cover different test speeds. Standard puncture fixtures are supplied and can be changed quickly to accommodate containers of various specifications. The instrument is commonly used by drug testing laboratories, pharmaceutical packaging manufacturers, pharmaceutical companies and medical device manufacturers.

Applications

• Testing puncture force of rubber stoppers for pharmaceutical containers
• Quality control of plastic and laminated films
• Material testing such as artificial skin
• Testing combination caps and oral liquid bottle caps

Product Features

• Imported microcomputer control technology with open structure and user-friendly HMI for easy operation
• Multiple test modes including constant force mode and constant displacement mode
• Precision lead screw transmission with high-quality stainless steel guide rails and optimized structural layout for smooth operation
• Imported high-precision force sensor with Class 0.5 measurement accuracy
• Precision stepping motor drive for smooth transmission, low noise, high positioning accuracy and improved repeatability
• LCD display (Chinese interface), fully automatic testing and statistical data processing
• High-speed micro printer with fast printing, low noise, no ink ribbon required and easy paper replacement
• Built-in dedicated calibration program for convenient calibration by metrology and third-party calibration institutions
• High-definition color display showing curves and text for clear visualization
• Optional PC software for bidirectional operation and data management
• Supplied with standard puncture fixtures suitable for various container specifications; fixtures are easy and quick to replace

Technical Specifications
Measurement range: 5 kg (other ranges optional)
Units: N / kg / lb
Measurement accuracy: Class 0.5
Test stroke: ≤ 300 mm
Test speed: 1–500 mm/min, stepless adjustable
Dimensions: 430 × 430 × 600 mm (L × W × H)
Weight: approx. 60 kg
Power supply: AC 220 V ± 22 V, 50 Hz

Specifications

• Imported high-precision force sensor and precision stepping motor drive
• Microcomputer control, LCD color display, statistical data processing and optional PC software
• High-speed micro printer and built-in calibration program
• Supplied with standard puncture fixtures suitable for various container specifications
