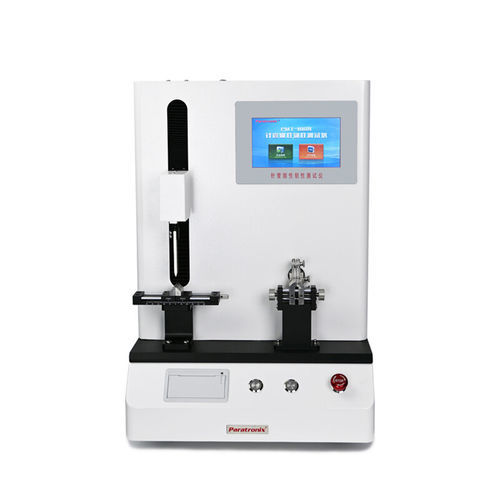

Fatigue testing machine PMY-100N

forceenduranceresistance

Product introduction
PMY-100N is a laboratory instrument developed in accordance with relevant injection-needle standards to evaluate rigidity and toughness of disposable injection needles. It is suitable for testing dermal, subcutaneous, intramuscular and intravenous disposable needle tubes, pre-pot-sealed syringe tubes and other straight stainless-steel medical needles.

Product standards

• GB 15811-2016 Disposable Sterile Injection Needle
• YBB00112004-2015 Pre-potting Syringe Assembly (with needle)
• YBB000992004-2015 Stainless Steel Injection Needle for Pre-potting Syringes
• GB/T 18457-2015 Stainless Steel Syringes for Manufacturing Medical Devices

Equipment characteristics

• 7-inch color touch screen for intuitive operation
• Three-level user management to meet GMP traceability
• Configurable tests to cover rigidity and cyclic toughness requirements
• Cost-effective design with high-precision force sensor
• Large-capacity storage for test results and parameters
• Full numeric keypad for sample classification and quick settings

Test principle
Rigidity: Apply a specified force at the center of a supported span of the needle and measure needle deflection.
Toughness: Fix one end of the needle, apply cyclic bending from a fixed point over a specified span—bend to a set angle in one direction, then to the opposite direction—for a defined number of cycles to assess fatigue resistance.

Product parameters

• Model / Equipment type: PMY-100N (equipment type PMT-100N in documentation)
• Device name: Needle tube rigidity and toughness tester
• Power supply: 220V 50Hz
• Overall dimensions (L×W×H): 420 × 350 × 620 mm
• Weight: approx. 30 kg
• Rigidity measuring range: 100 N
• Force resolution: 0.01 N
• Force accuracy: 0.3% F.S.
• Effective stroke: 150 mm
• Support span: 1–60 mm
• Deflection accuracy: 0.01 mm
• Test speed: 0.1–200 mm/min (stepless)
• Toughness sample diameter: 0.2–3.4 mm
• Toughness test frequency: 0.1–1.0 Hz
• Bending angle: 1–30°
• Bending distance: 5–100 mm
• Range accuracy: ±0.1 mm
• Angular accuracy: ±0.1°
• Number of bending cycles: 1–999 times

Applications and technical notes

• Designed for laboratory verification of needle rigidity and cyclic bending strength in medical device production and quality control.
• Suitable for bending/fatigue tests on stainless-steel needle tubes and pre-potting syringe assemblies.
• Provide traceable results with high-precision sensor and configurable test programs for compliance checks.
