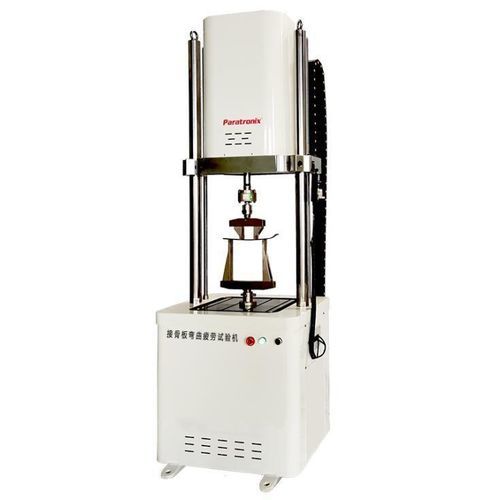

Bending testing machine PBFT-BP30

tensilefatiguecomputer-controlled

Product introduction
The PBFT-BP30 is a laboratory tester designed for bending and tensile fatigue testing of surgical implants, metal bone plates, bone screws and other orthopedic medical materials. It supports standardized test procedures and research on mechanical fatigue behaviour of implantable components.

Function

• Execute bending fatigue tests and tensile fatigue tests on surgical implants and metal bone plates.
• Acquire synchronized force/displacement data for durability and lifecycle analysis.
• Support custom test waveforms and programmable test sequences for R&D and validation.

Standards

• YY/T 0342 — Determination of bending strength and stiffness of bone plates for surgical implants
• JB/T 9397 — Tensile fatigue tester technical conditions
• JJG 139 — Tensile, compression and universal testing machine
• YY 0017 — Bone joint implant — metal bone plate
• YY 0018-2008 — Bone joint implant — metal bone screw
• GB/T 232 — Bending test method for metallic materials
• YY/T 1503-2016 — Test method for bending fatigue performance of metal bone plates for surgical implants

Equipment description

• Measurement and control system composed of dynamic test host, dynamic fatigue loading module, specimen fixtures and PC-based control system.
• Two-column frame with electrically adjustable middle beam; actuator mounted at mid-crossbeam; sample mounted via dedicated fixtures on T-slots or pin-hole connector.
• Workbench with T-slots and central pin-hole connector to accommodate different fixtures and test configurations.
• High-precision actuator paired with an imported force sensor for accurate closed-loop control and reliable test data.
• Beam lifting mechanism driven by servo motor, synchronous belt and ball screw; manual controller available for fine adjustment; high-strength bolt locking with specified tightening torque.
• Fixture options: custom fixtures manufactured to standard requirements and installed on pin-hole connector or T-slot.
• Test execution supports sine and user-defined waveforms, adjustable frequency and amplitude, and synchronous data collection and storage.

Fatigue loading control software

• PCBP-system full digital closed-loop servo control integrating load sensor, displacement sensor, servo actuator and digital control software.
• Windows-based test software with simple operation, real-time process curve display, data processing, storage and export functions.
• Supported waveforms: sine, half-sine, triangular, square, oblique and combined waves; programmable control and automatic saving of key results (load, frequency, cycles, test time).

Technical parameters

• Model: PBFT-BP30
• Maximum dynamic test force: 3000 N
• Dynamic display accuracy: ±0.5% (in 5%–100% range)
• Amplitude fluctuation: ±0.5% FS
• Actuator travel (stroke): 100 mm
• Frequency range: 0.1–15 Hz
• Control modes: displacement control, force control, closed-loop digital control
• Main test waveforms: sine, triangular, rectangular, oblique, combined
• Pin-hole center height: 1000 mm
• Clear distance between columns: 505 mm
• Beam lifting: servo motor, synchronous belt, ball screw; manual controller option
• Beam locking torque: 150 N·m
• Endurance cycles: unlimited
• Equipment power: 3500 W
• Supply voltage: ~380 V ±10%, 50 Hz (earth connection required)
• Machine dimensions (L×W×H): 700 × 685 × 2086 mm
• Fixture approximate mass: ≈500 kg

Configuration list

• Two-column main frame — Quantity: 1 unit
• Beam lifting mechanism — Quantity: 1 set
• Fatigue actuator — Quantity: 1 set
• Force measurement sensor — Mark: CELTRON (USA) — Quantity: 1 set
• Beam drive motor — Mark: PANASONIC (Japan) — Quantity: 1 set
• Fatigue measurement & control software — Quantity: 1 set
• Computer and monitor — Mark: ADVANTECH — Quantity: 1 unit
• Fixtures — Supplied by user or manufactured to order — Quantity: as required
• Specification documentation — Quantity: 1 set
