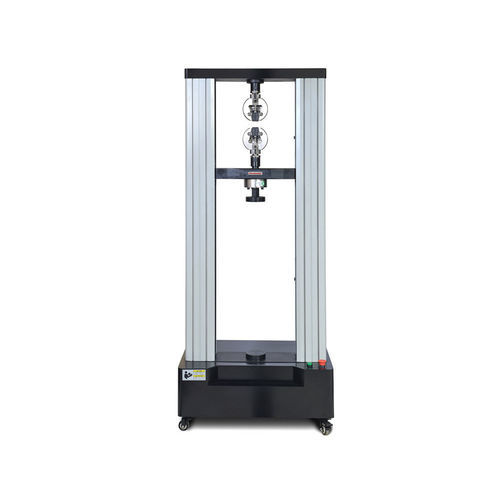

Compression testing machine ETT-C

bendingshearingtensile

Product introduction
ETT-C is a microcomputer-controlled electronic universal testing machine designed for mechanical property tests including tensile strength, fixed elongation, elongation at break and yield strength. The frame and accessories are engineered for easy operation and stable performance. The system uses a servo motor driven by an AC speed-control unit and a high-precision ball-screw pair to drive the crosshead over a large travel distance.

Main functional and software features
The machine integrates an AC speed control with a synchronous toothed-belt deceleration system and precision ball screws. PC-based control software (Windows) with virtual-instrument display shows test force, peak force, crosshead displacement, specimen deformation and test curves. A dual-channel full-digital programmable amplifier provides zero adjustment, gain adjustment and automatic calibration without analog potentiometers, enabling simple and reliable control.

Applications

• Tensile testing of metals and non-metals
• Measurement of elongation, tensile strength and yield strength
• Fixed elongation and elongation at break tests
• Compression, bending, shear, peel and tear tests (with appropriate fixtures)
• Quality control, teaching, research, aerospace, metallurgy, wire rope, automotive, plastics, rubber, textiles

Technical parameters

• Maximum test force: 50 kN (other ranges optional)
• Precision class: Level 1
• Force measurement range: 2%–100%, indication error ±1%
• Force resolution: 1/300000 of maximum force
• Deformation measurement range: 2%–100%, indication error ±1%, resolution 1/300000
• Displacement resolution: 0.01 mm
• Velocity range: 0.01 mm/min – 500 mm/min (stepless)
• Drawing stroke: 600 mm; Compressed space: 600 mm; Test width: 450 mm
• Servo motor power: 1.5 kW
• Main dimensions: 868 × 580 × 1836 mm; Total weight: 550 kg
• Control: PC-based software, virtual instrument display, dual-channel digital amplifier

Basic configuration

• Host frame: self-produced — 1 set
• Deceleration system: synchronous toothed belt — 1 set
• Ball screw pair: Taiwan TBI (rolling) — 2 sets
• Load sensor: 100 kN — 1
• Computer: Lenovo/HP — 1 set
• Electric motor: standard domestic (Panasonic optional) — 1 set
• Printer: inkjet printer — 1 set
• Photoelectric encoder: Line 2000 (Omron) — 1
• Software and control system: self-developed — 1 set
• Manuals and files: instruction and installation manuals — 1 set
• Wedge-type tensile fixture — 1 set; Compression accessory — 1 set

Notes
Drive by high-precision ball screw pair, AC speed control with servo motor and PC-based virtual-instrument software ensure accurate data acquisition, display and integrated control.
