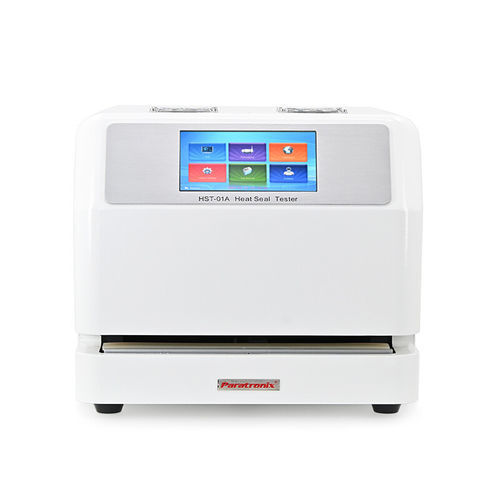

Pressure testing machine HST-01A

temperaturemanualcomputer-controlled

Product Introduction
The HST-01A Heat Seal Tester is a laboratory instrument for determining optimal heat-sealing parameters — sealing temperature, sealing pressure and dwell time — for plastic films, laminated flexible films, plastic-coated paper and other heat-sealable materials.

Key Features

• Built-in microcomputer control with intuitive user interface and 8-inch color LCD for real-time data display
• Digital PID temperature control for fast setpoint attainment and minimal temperature fluctuation
• Independent temperature control of upper and lower jaws; patented jaw design ensures uniform heating across the sealing surface
• Touch-screen input for temperature, pressure and time; test start via manual button or foot pedal for operator safety
• Double-side heating mode and standard sealing width 330 mm × 10 mm (customizable)

Test Standards
This instrument complies with multiple international standards, including ASTM F2029.

Technical Specifications

• Model: HST-01A
• Heat sealing temperature: Room Temperature +8℃ to 300℃
• Heat sealing pressure: 50 to 700 KPa (depends on sealing dimension)
• Dwell time: 0.1 to 999.9 s
• Temperature control accuracy: ±0.2℃
• Temperature uniformity: ±1℃
• Heating mode: Double-side heating (independent control)
• Heat sealing area: 330 mm × 10 mm (customizable)
• Power supply: AC 220V 50Hz / AC 120V 60Hz
• Air source: 0.7 MPa to 0.8 MPa (user-supplied)
• Port size: Ф6 mm PU tubing
• Dimensions (L×W×H): 400 × 320 × 400 mm
• Net weight: 40 kg
• Standard configuration: Main unit, foot pedal switch
• Optional accessories: Micro printer; 15# sampling knife; silicone rubber plate; high-temperature solder cloth
