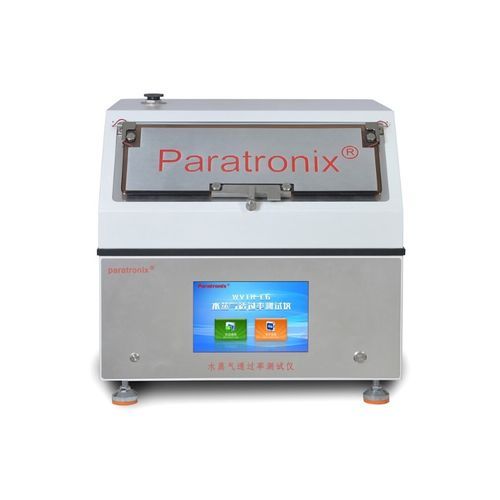

Permeameter WVTR-C6

Product introduction
WVTR-C6 is a gravimetric water vapor transmission rate tester designed to measure WVTR of plastic films, composite films, sheets and other packaging, medical and construction materials. It combines high-resolution weighing, controlled temperature and humidity and multi-cup independent testing for reliable laboratory and production quality control.

Features

• Gravimetric cup method capable of WVTR measurement from 0.1 g/m²·24h
• High-resolution weighing sensor for improved sensitivity and accuracy
• Wide measurement range and automatic temperature/humidity control for non-standard tests
• Standard purge speed maintains stable humidity differential across the cup
• Automatic zeroing before each weighing to ensure measurement consistency
• Cylinder lift mechanical design and intermittent weighing reduce system error
• Quick access verification socket for rapid temperature and humidity calibration
• Precision mechanical design for high accuracy and detection efficiency
• Six independently testable permeation cups with separate data display
• Large touchscreen HMI for intuitive operation and fast operator training
• Multi-format test data storage, import/export and historical data analysis and printing

Technical specifications

• Model: WVTR-C6
• Measuring range: 0.1–10,000 g/m²·24h (conventional)
• Sample channels: 3 independent test data (6 cups total)
• Measuring precision: 0.01 g/m²·24h; resolution: 0.0001 g
• Temperature control: 15℃–55℃ (standard); 5℃–95℃ (optional); accuracy ±0.1℃
• Humidity control: standard 90%RH; accuracy ±1%RH
• Purge speed: 0.5–2.5 m/s (customizable)
• Sample thickness: ≤3 mm (customizable)
• Measuring area: 33 cm²; sample size: Φ74 mm
• Testing modes: Cup method (standard), desiccant method (optional)
• Air source pressure: 0.6 MPa; port size: Φ6 mm PU tube
• Power supply: 220 VAC 50 Hz / 120 VAC 60 Hz; dimensions: 660×480×525 mm; net weight: 70 kg

Test principle
The instrument uses the permeation cup gravimetric principle: at a set temperature a defined humidity difference is applied across the sample. Water vapor passes through the sample to the dry side (permeation cup). By recording the mass change of the cup over time, the WVTR and related parameters are calculated.

Test standards

• ASTM E96
• ASTM D1653
• TAPPI T464
• ISO 2528
• JIS Z0208

Configuration

• Standard: instrument, computer, testing software, communication cable, sample cutter, vacuum seal grease, printer
• Optional: package/container test accessories and temperature control device
• Note: user supplies air source and distilled water; manufacturer reserves right to modify configuration
