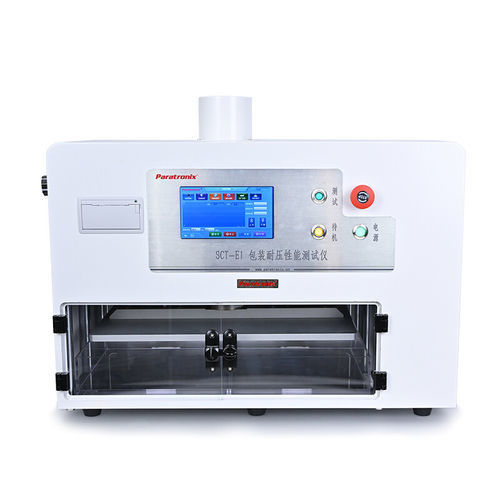

Compression resistance testing machine SCT-E1

automaticfor cardboard boxesfor paper

Product Introduction
The SCT-E1 Package Compressive Resistance Tester is designed to evaluate the compressive resistance of flexible packaging—including plastic bags, paper bags and carton boxes—by applying a specified pressure and observing for leakage or failure after a defined dwell time. It is intended for laboratory quality control and incoming/outgoing inspection in packaging production and logistics.

Product Features

• Intelligent embedded operating system with a user-friendly interface
• 7-inch color LCD touchscreen for intuitive operation and clear test data display
• Fully automatic test cycles with automatic stop and platen return
• Multiple test modes: pressure-retaining (dwell) test and burst test
• Pressure platen overload protection, automatic return and power-off data memory for safe operation and data integrity
• Integrated micro-printer for immediate result documentation

Test Standards

• ASTM D642
• ASTM D4169
• TAPPI T804
• ISO 12048
• JIS Z0212

Technical Specifications
Item — Parameter
Test Range — 0 ~ 2000 N (Customization available)
Test Speed — 1 ~ 300 mm/min, stepless speed regulation
Test Accuracy — Better than 0.5 grade
Sample Size — Length 350 mm × Width 260 mm × Thickness 100 mm (Maximum)
Instrument Dimension — 540 mm (L) × 380 mm (W) × 520 mm (H)
Power Supply — AC 220 V, 50 Hz
Net Weight — 48 kg
Standard Configuration — Main instrument, micro-printer, communication cable

Characteristics / technical specifications

• Test range: 0 ~ 2000 N (customization available)
• Test speed: 1 ~ 300 mm/min, stepless regulation
• Accuracy: better than 0.5 grade
• Maximum sample size: 350 × 260 × 100 mm
• Dimensions: 540 × 380 × 520 mm (L×W×H)
• Power supply: AC 220 V, 50 Hz
• Net weight: 48 kg
• Standard accessories: micro-printer, communication cable
